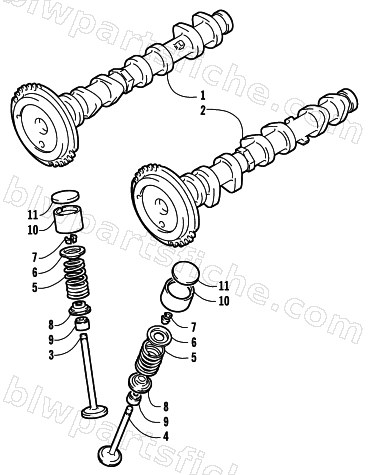

2003 Arctic Cat BEARCAT WIDE TRACK — CAMSHAFT/VALVE ASSEMBLY

2003 BEARCAT WIDE TRACK

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3006-574	CAMSHAFT,INTAKE	1	$812.95
2	3006-575	CAMSHAFT,EXHAUST	1	$837.95
3	3006-198	VALVE,INTAKE '02 660 L/C	1	$124.95
4	3006-199	VALVE,EXH '02 660 L/C	1	$160.95
5	3006-576	SPRING,VALVE	1	$25.95
6	3006-201	RETAINER,VALVE SPRING '02 660 L/C	1	$24.95
7	0693-281	COTTER, VALVE	1	$3.16
8	3006-203	SEAT,VALVE SPRING '02 660 L/C	1	$14.95
9	3006-125	SEAL,VALVE STEM-5.5X11.5X9.3 '02 660 L/C	1	$27.95
10	3006-171	TAPPET, '02 660 L/C	1	$127.95
11	3006-779	SHIM,TAPPET,T:2.30	1	$32.95
11	3006-173	SHIM,TAPPET '02 660 L/C	1	$29.95
11	3006-781	SHIM,TAPPET,T:2.34	1	$32.95
11	3006-782	SHIM,TAPPET,T:2.36	1	$32.95
11	3006-783	SHIM,TAPPET,T:2.38	1	$32.95
11	3006-784	SHIM,TAPPET,T:2.40	1	$31.95
11	3006-785	SHIM,TAPPET,T:2.42	1	$32.95
11	3006-786	SHIM,TAPPET,T:2.44	1	$32.95
11	3006-787	SHIM,TAPPET,T:2.46	1	$31.95
11	3006-788	SHIM,TAPPET,T:2.48	1	$31.95
11	3006-789	SHIM,TAPPET,T:2.50	1	$32.95
11	3006-790	SHIM,TAPPET,T:2.52	1	$31.95
11	3006-791	SHIM,TAPPET,T:2.54	1	$31.95
11	3006-792	SHIM,TAPPET,T:2.56	1	$31.95
11	3006-186	SHIM,TAPPET '02 660 L/C	1	$26.95
11	3006-187	SHIM,TAPPET '02 660 L/C	1	$33.95
11	3006-188	SHIM,TAPPET '02 660 L/C	1	$33.95
11	3006-189	SHIM,TAPPET '02 660 L/C	1	$36.95
11	3006-190	SHIM,TAPPET '02 660 L/C	1	$33.95
11	3006-191	SHIM,TAPPET '02 660 L/C	1	$36.95
11	3006-192	SHIM,TAPPET '02 660 L/C	1	$33.95
11	3006-193	SHIM,TAPPET '02 660 L/C	1	$33.95
11	3006-194	SHIM,TAPPET '02 660 L/C	1	$36.95
11	3006-195	SHIM,TAPPET '02 660 L/C	1	$36.95
11	3006-196	SHIM,TAPPET '02 660 L/C	1	$36.95
11	3006-197	SHIM,TAPPET '02 660 L/C	1	$36.95
