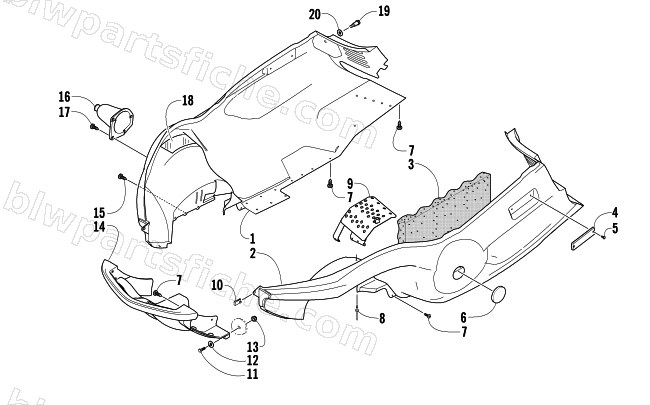

2003 Arctic Cat BEARCAT WIDE TRACK — BELLY PAN AND FRONT BUMPER ASSEMBLY
2003 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-540 | BELLYPAN, OUTER-RH-BLK | 1 | $576.95 | |
| 1 | 2706-192 | BELLYPAN, RH-BC W/T OS-ROUTED | 1 | $288.95 | |
| 2 | 2606-541 | BELLYPAN, OUTER-LH-BLK | 1 | $480.95 | |
| 3 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 4 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 5 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 6 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 9 | 0745-211 | BRKT, CLUTCH GUARD-PTD BLK | 1 | $82.95 | |
| 10 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 11 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 12 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 2606-224 | BUMPER,FR ROUTED | 1 | $152.95 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 16 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 17 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 18 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 19 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
