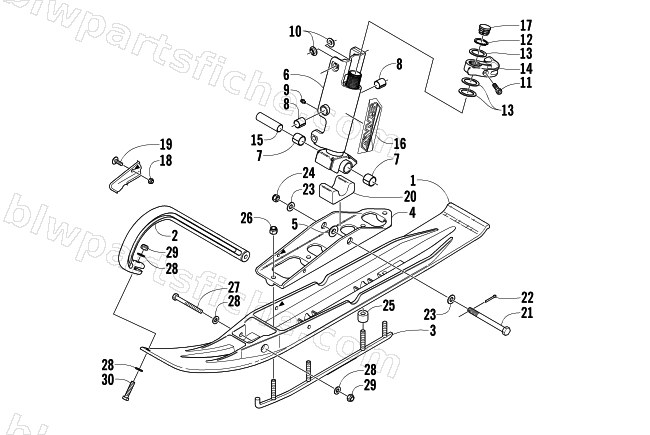

2003 Arctic Cat 440 SNO PRO L/C — SKI AND SPINDLE ASSEMBLY
2003 440 SNO PRO L/C
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-844 | SKI,PLASTIC-GRN (USE 0703-595 BLACK) | 1 | $227.95 | |
| 2 | 1603-248 | HANDLE, PLASTIC SKI - ZR GREEN | 1 | $46.95 | |
| 3 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 4 | 1703-187 | SADDLE,SKI W/INSERTS-ASSY | 1 | $104.95 | |
| 5 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 6 | 1703-272 | SPINDLE,RH-FABR | 1 | $326.95 | |
| 6 | 1703-273 | SPINDLE,LH-FABR | 1 | $326.95 | |
| 7 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 8 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 9 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 10 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 11 | 8005-584 | SCREW, CAP-HSH 5/16-18X1.25 Z&Y | 1 | $0.65 | |
| 12 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 13 | 1603-203 | WASHER,THRUST-SPINDLE WELD'T-.060 | 1 | $2.75 | |
| 14 | 1703-412 | ARM,STEERING-SPINDLE-PTD GRN | 1 | $80.95 | |
| 15 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 16 | 5611-192 | DECAL,SPINDLE-RH | 1 | $42.95 | |
| 16 | 5611-193 | DECAL,SPINDLE-LH | 1 | $42.95 | |
| 17 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 18 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 20 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 21 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 22 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 23 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 24 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 25 | 1603-968 | SPACER,SADDLE | 1 | $4.95 | |
| 26 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 27 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 | |
| 28 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 29 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 30 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 |
