2003 Arctic Cat 440 SNO PRO L/C — SEAT ASSEMBLY

2003 440 SNO PRO L/C

Scroll / pinch to zoom · drag or arrow keys to pan · double-click resets

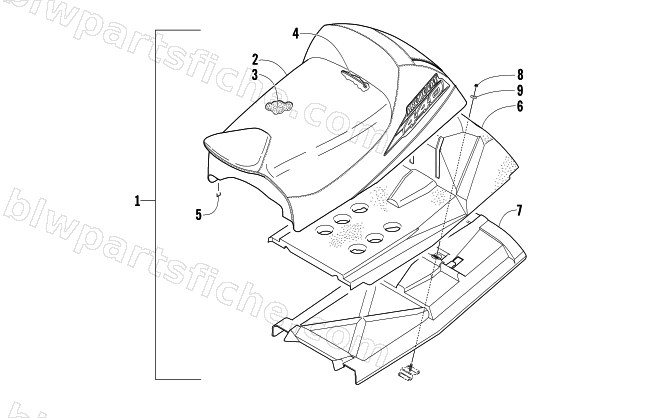

SEAT ASSEMBLY diagram

Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.

Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

# Part No. Description Qty Price
2 2706-238 COVER,SEAT-W/DECAL 1 $410.95
3 0717-181 FOAM,SEAT(77-82 ILD).50@4.5 1 $162.95
4 1606-150 WIRE, SEAT 1 $3.02
5 0624-528 STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA 1 $161.95
6 0617-438 FOAM,SEAT-LWR 1 $143.95
7 2606-907 BASE,SEAT-PLASTIC 1 $296.95
8 8040-366 NUT,HEX LOCK-NYL 1/4-20 Z&Y 1 $0.26
9 0623-875 WASHER, BACKING-7MM ID X 11/8OD 1 $1.78
