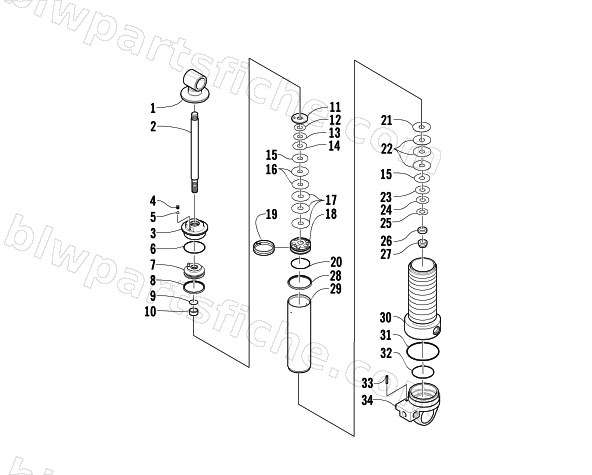

2003 Arctic Cat 440 SNO PRO L/C — REAR SUSPENSION FRONT ARM SHOCK ABSORBER

2003 440 SNO PRO L/C

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	0704-960	SHOCK,FRONT ARM	1	$1,156.95
1	0604-625	EYELET, SHOCK-ASSY	1	$95.95
2	2604-529	SHAFT,.498 X 6.690 X 1.20	1	$153.95
3	2604-568	BEARING,.498-FRT ARM ASSY	1	$184.95
4	1603-940	SCREW-SET,8-32X.250	1	$1.95
5	1604-315	BALL, BLEED	1	$4.95
6	1604-420	O-RING	1	$4.95
7	2604-444	PISTON,SEPARATOR-1.459 BORE	1	$99.95
8	0603-447	O-RING, .139 CS X 1.171 ID (FOX)	1	$4.95
9	2604-213	O-RING, .139X.484	1	$5.95
10	2604-203	BEARING,INTERNAL	1	$3.95
11	0603-540	WASHER, TOP OUT-1.125OD X .378 ID X.093	1	$16.49
12	0603-879	VALVE, SHOCK .800 X.012(040-12-080)	1	$6.95
13	0603-880	VALVE, SHOCK .900 X.012(040-12-090)	1	$12.95
14	0603-887	VALVE, SHOCK 1.000 X.015	1	$6.95
15	0603-882	VALVE, SHOCK 1.100 X.012(3/8ID)	1	$12.95
16	0603-350	VALVE,1.300X.010(3/8ID)	1	$17.95
17	0603-891	VALVE, SHOCK 1.300 X.012	1	$12.95
18	2604-465	PISTON,DAMPING-1.459 BORE,.046	1	$31.95
19	0603-292	STRAP,PISTON-(STEP)-TURCITE	1	$36.95
20	2604-214	O-RING-25MM ID X 1.5 MM CS	1	$4.95
21	0603-883	VALVE, SHOCK 1.250 X.012(3/8ID)	1	$6.95
22	0603-347	VALVE,1.250X.010(3/8ID)	1	$13.95
23	0603-881	VALVE, SHOCK 1.000 X.012(3/8ID)	1	$6.95
24	0603-338	VALVE, .900X.010(3/8ID)	1	$14.95
25	0603-335	VALVE, .800X.010(3/8ID)	1	$12.95
26	0603-389	WASHER,BACKUP	1	$12.95
27	0603-301	NUT,CAP-FOX SHOCK	1	$6.95
28	0604-810	O-RING	1	$4.95
29	2604-220	BODY,SHOCK-5.59	1	$241.95
30	2604-443	SLEEVE,ADJUSTER-1.459 BORE	1	$276.95
31	0604-809	O-RING	1	$4.95
32	0603-438	O-RING -END CAP	1	$4.95
33	1604-097	PIN,ROLL-SPRING	1	$2.95
34	2604-523	CAP,BODY-1.459 BORE	1	$371.95
