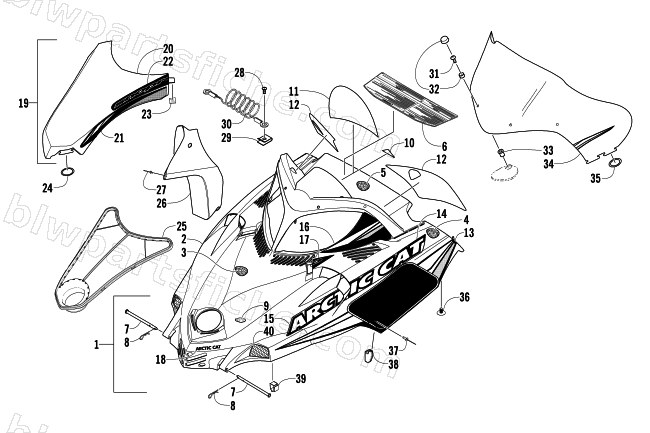

2003 Arctic Cat 440 SNO PRO L/C — HOOD AND WINDSHIELD ASSEMBLY
2003 440 SNO PRO L/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-368 | HOOD W/DECALS | 1 | $1,329.95 | |
| 2 | 1718-464 | HOOD W/O DECALS | 1 | $1,090.95 | |
| 3 | 0717-169 | FOAM, HOOD-CENTER FRT | 1 | $8.95 | |
| 4 | 0717-170 | FOAM, HOOD-REAR RH | 1 | $8.95 | |
| 4 | 0717-171 | FOAM, HOOD-REAR LH | 1 | $8.95 | |
| 5 | 0717-172 | FOAM, HOOD-REAR | 1 | $8.95 | |
| 6 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 7 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 8 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 9 | 3606-130 | FOIL,HOOD-UPR LEFT | 1 | $16.95 | |
| 11 | 5611-199 | DECAL,GAUGE COVER | 1 | $76.95 | |
| 12 | 5611-194 | DECAL,CONSOLE-RH | 1 | $20.63 | |
| 12 | 5611-195 | DECAL,CONSOLE-LH | 1 | $22.01 | |
| 13 | 5611-178 | DECAL,HOOD-LWR RH | 1 | $197.95 | |
| 13 | 5611-179 | DECAL,HOOD-LWR LH | 1 | $150.95 | |
| 14 | 5611-186 | DECAL,HOOD-VENT RR-RH | 1 | $43.95 | |
| 14 | 5611-187 | DECAL,HOOD-VENT RR-LH | 1 | $88.95 | |
| 15 | 5611-184 | DECAL,HOOD-VENT FWD-RH | 1 | $85.95 | |
| 15 | 5611-185 | DECAL,HOOD-VENT FWD-LH | 1 | $85.95 | |
| 16 | 5611-201 | DECAL,HOOD-LIGHT LH | 1 | $37.95 | |
| 17 | 5611-180 | DECAL,HOOD-UPR RH | 1 | $19.25 | |
| 17 | 5611-181 | DECAL,HOOD-UPR LH | 1 | $19.25 | |
| 18 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 19 | 1718-369 | COVER,HOOD-W/DECALS | 1 | $319.95 | |
| 20 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 21 | 5611-188 | DECAL,COVER-RH | 1 | $34.95 | |
| 21 | 5611-189 | DECAL,COVER-LH | 1 | $34.95 | |
| 22 | 5611-182 | DECAL,COVER-UPR RH | 1 | $29.95 | |
| 22 | 5611-183 | DECAL,COVER-UPR LH | 1 | $29.95 | |
| 23 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 24 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 25 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 26 | 3606-030 | DUCT, BRAKE-PLASTIC | 1 | $94.95 | |
| 27 | 0623-853 | RIVET, BLIND-.162 DIA X .040/.275 GRIP | 1 | $1.09 | |
| 28 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 29 | 1623-052 | NUT,U | 1 | $0.95 | |
| 30 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 31 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 32 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 33 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 34 | 3606-019 | WINDSHIELD,RACE-CHROME W/GRAPHIC | 1 | $258.95 | |
| 35 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 36 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 38 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 39 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 40 | 2606-974 | SCREEN, HOOD RH LOWER-BLK | 1 | $52.95 | |
| 40 | 2606-975 | SCREEN, HOOD LH LOWER-BLK | 1 | $57.95 |
