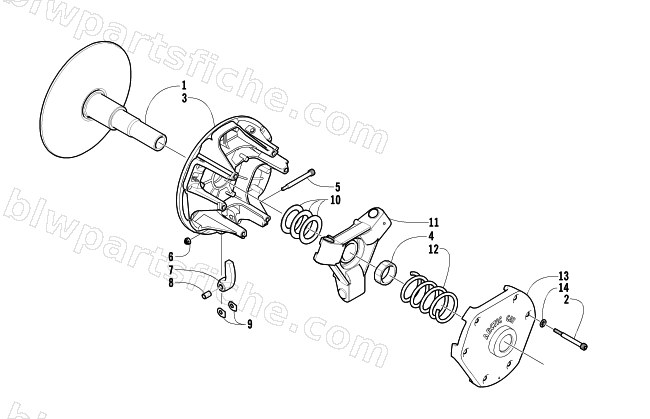

2003 Arctic Cat 440 SNO PRO L/C — DRIVE CLUTCH
2003 440 SNO PRO L/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-422 | CLUTCH,DRIVE-UNCAL-8.0" 30MM/D/NFP/440SP | 1 | $971.95 | |
| 1 | 0646-361 | SHEAVE,STATIONARY-MACH SHALLOW BORE | 1 | $245.95 | |
| 2 | 0623-596 | SCREW,MACH-TSH 1/4X2.50 Z&Y | 1 | $4.95 | |
| 3 | 0646-326 | SHEAVE, MOVEABLE - DRIVE CLUTCH | 1 | $308.95 | |
| 4 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 5 | 0646-295 | PIN, CAM-ARM | 1 | $15.11 | |
| 6 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 8 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 9 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 10 | 0646-265 | WASHER,SPACER-CLUTCH .060 (BLACK) | 1 | $3.16 | |
| 10 | 0646-318 | SPACER,CLUTCH-SPIDER | 1 | $23.95 | |
| 11 | 0746-118 | SPIDER, ASSY-MACH | 1 | $283.95 | |
| 12 | 0646-684 | SPRING,CLUTCH-BLACK | 1 | $57.95 | |
| 13 | 0746-097 | COVER,DRIVE CLUTCH-ASSY | 1 | $117.95 | |
| 14 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 |
