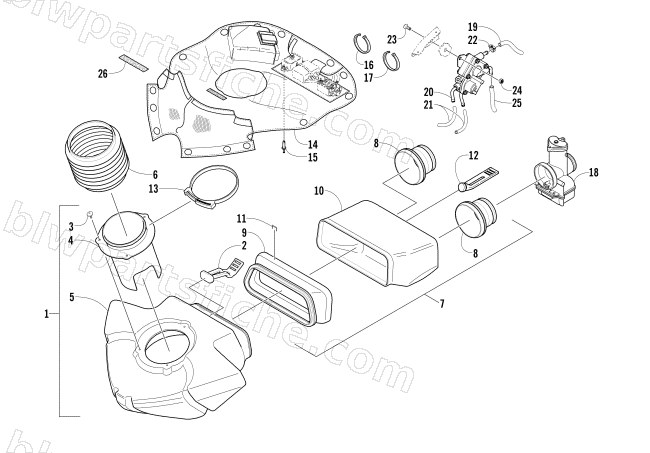

2003 Arctic Cat 440 SNO PRO L/C — AIR SILENCER ASSEMBLY
2003 440 SNO PRO L/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-580 | SILENCER,AIR-ASSY | 1 | $121.95 | |
| 3 | 8017-397 | SCREW,MACH-TSTRH 10-24X.5 GR2 Z&Y | 1 | $0.35 | |
| 4 | 1670-315 | TUBE,AIR INLET-AIR SILENCER | 1 | $20.63 | |
| 6 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 7 | 0770-581 | BOOT,AIR SILENCER-ASSY | 1 | $135.95 | |
| 8 | 1670-677 | BOOT,CARB | 1 | $45.95 | |
| 9 | 1670-317 | SEAL,RUBBER-AIR SILENCER | 1 | $56.95 | |
| 10 | 1670-318 | BOOT, EXTENSION-AIR SILENCER | 1 | $69.95 | |
| 12 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 13 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 14 | 2706-337 | POUCH,ELECTRICAL COMPONENT-ASSY | 1 | $298.95 | |
| 15 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 16 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 17 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 18 | 1670-512 | CARB,F1-TMX34-26 - LAYDOWN STYLE | 1 | $440.95 | |
| 19 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 19 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 20 | 1670-269 | PUMP, FUEL - LAYDOWN | 1 | $185.95 | |
| 21 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 21 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 22 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 23 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 24 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 26 | 2706-458 | VELCRO,HOOK-5/8"X10FT | 1 | $58.95 |
