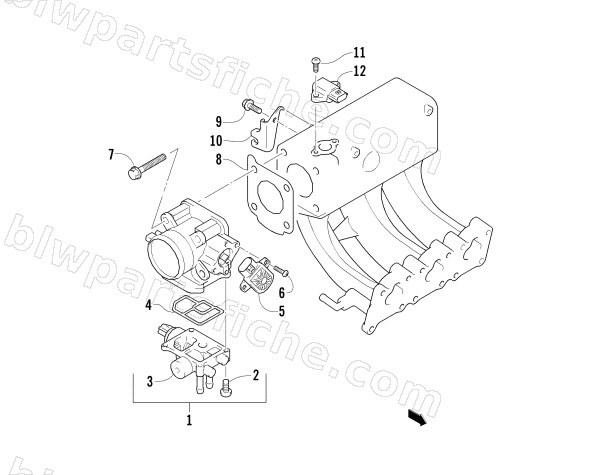

2003 Arctic Cat 4-STROKE TRAIL — THROTTLE BODY ASSEMBLY
2003 4-STROKE TRAIL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-581 | BODY ASSY,THROTTLE | 1 | $1,704.95 | |
| 2 | 3006-211 | SCREW,5X14 '02 660 L/C | 1 | $5.95 | |
| 3 | 3006-582 | VALVE,ISC | 1 | $713.95 | |
| 4 | 3006-215 | GASKET,ISC VALVE '02 660 L/C | 1 | $30.95 | |
| 5 | 3006-651 | SENSOR,THROTTLE-'03 4-STROKE | 1 | $567.95 | |
| 6 | 3006-652 | SCREW,TPS SENSOR | 1 | $5.65 | |
| 7 | 3007-238 | BOLT,EGR VALVE | 1 | $4.95 | |
| 8 | 3006-560 | GASKET,THROTTLE BODY-660 L/C | 1 | $19.25 | |
| 9 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 10 | 3006-585 | GUIDE,ACCEL CABLE | 1 | $16.49 | |
| 11 | 3007-385 | SCREW | 1 | $2.95 | |
| 12 | 3006-584 | SENSOR,PRESSURE | 1 | $686.95 |
