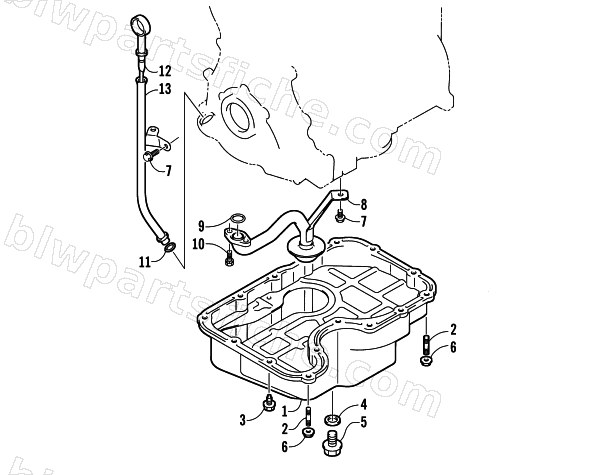

2003 Arctic Cat 4-STROKE TOURING () — OIL PAN ASSEMBLY
2003 4-STROKE TOURING ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-142 | PAN COMP,OIL '02 660 L/C | 1 | $256.95 | |
| 2 | 3006-105 | BOLT,STUD '02 660 L/C'02 660 | 1 | $4.95 | |
| 3 | 3006-107 | BOLT,6X16 '02 660 L/C | 1 | $14.95 | |
| 4 | 3006-113 | GASKET, '02 660 L/C | 1 | $5.92 | |
| 5 | 3006-118 | PLUG, '02 660 L/C | 1 | $12.95 | |
| 6 | 3007-373 | NUT | 1 | $3.16 | |
| 7 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 8 | 3006-223 | STRAINER COMP,OIL PUMP '02 660 L/C | 1 | $85.95 | |
| 9 | 3006-123 | O-RING,D:2.4,ID:15.8 '02 660 L/C | 1 | $6.47 | |
| 10 | 3007-374 | BOLT | 1 | $3.16 | |
| 11 | 3006-122 | O-RING,D:1.9,ID:9.8 '02 660 L/C | 1 | $13.73 | |
| 12 | 3006-882 | GUAGE,OIL LEVEL | 1 | $41.95 | |
| 13 | 0637-324 | GUIDE KIT, GAUGE | 1 | $61.95 |
