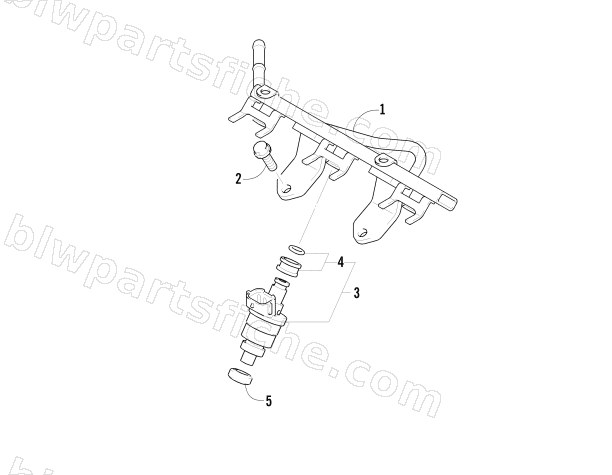

2003 Arctic Cat 4-STROKE TOURING () — DELIVERY PIPE ASSEMBLY
2003 4-STROKE TOURING ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-589 | PIPE,DELIVERY | 1 | $181.95 | |
| 2 | 3007-392 | BOLT | 1 | $3.95 | |
| 3 | 3006-590 | INJECTOR ASSY,FUEL | 1 | $705.95 | |
| 4 | 3006-591 | GROMMET SET | 1 | $34.95 | |
| 5 | 3006-126 | CUSHION,8.7X16.3X5.5 '02 660 L/C | 1 | $49.95 |
