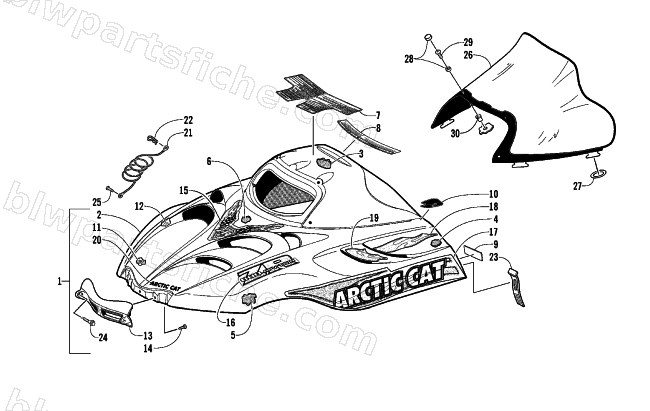

2002 Arctic Cat ZR 800 EFI — HOOD AND WINDSHIELD ASSEMBLY
2002 ZR 800 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-030 | HOOD, W/ DECAL-02 ZR 800 | 1 | $1,185.95 | |
| 1 | 1718-045 | HOOD, W/ DECAL-02 ZR 800 LE GRN | 1 | $1,264.95 | |
| 1 | 1718-141 | HOOD W/DECALS-02 ZR 800 EFI LE B | 1 | $1,185.95 | |
| 2 | 1718-031 | HOOD, W/O DECAL-02 ZR 800 | 1 | $1,168.95 | |
| 2 | 1718-044 | HOOD, W/O DECAL-02 ZR 800 LE | 1 | $1,168.95 | |
| 2 | 0718-944 | HOOD W/O DECALS-01 ZR | 1 | $1,229.95 | |
| 4 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 5 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 6 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 8 | 3611-486 | DECAL,CAUTION-ENGINE & BATTERY-ENGLISH | 1 | $12.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 9 | 3611-487 | DECAL,CAUTION-ENGINE & BATTERY-FRENCH | 1 | $13.95 | |
| 10 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 10 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 | |
| 10 | 3611-488 | DECAL,CAUTION-FUEL-ENGLISH | 1 | $12.95 | |
| 11 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 11 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 3611-489 | DECAL,CAUTION-FUEL-FRENCH | 1 | $13.95 | |
| 12 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 13 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 4611-105 | DECAL, HOOD-CTR | 1 | $42.95 | |
| 16 | 4611-368 | DECAL, HOOD-ZR 800 APV TWIN | 1 | $63.95 | |
| 17 | 4611-080 | DECAL,HOOD-LWR-RH | 1 | $136.95 | |
| 17 | 4611-081 | DECAL,HOOD-LWR-LH | 1 | $136.95 | |
| 18 | 4611-082 | DECAL,HOOD-VENT-RR RH | 1 | $19.95 | |
| 18 | 4611-083 | DECAL,HOOD-VENT-RR LH | 1 | $19.95 | |
| 18 | 4611-466 | DECAL, HOOD-GRN-CTR | 1 | $41.95 | |
| 18 | 4611-394 | DECAL, HOOD-CTR-BLK | 1 | $166.95 | |
| 19 | 4611-084 | DECAL,HOOD-VENT-FRT RH | 1 | $20.63 | |
| 19 | 4611-085 | DECAL,HOOD-VENT-FRT LH | 1 | $20.63 | |
| 19 | 4611-474 | DECAL, HOOD-800-RH-GRN | 1 | $40.95 | |
| 19 | 4611-473 | DECAL, HOOD-800-LH-GRN | 1 | $86.95 | |
| 19 | 4611-478 | DECAL, HOOD-800-RH-BLK | 1 | $44.95 | |
| 19 | 4611-477 | DECAL, HOOD-800-LH-BLK | 1 | $66.95 | |
| 20 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 20 | 4611-452 | DECAL, HOOD-LWR RH-GRN | 1 | $16.95 | |
| 20 | 4611-453 | DECAL, HOOD-LWR-LH-GRN | 1 | $251.95 | |
| 20 | 4611-396 | DECAL, HOOD-LWR RH-BLK | 1 | $57.95 | |
| 20 | 4611-397 | DECAL, HOOD-LWR-LH-BLK | 1 | $36.95 | |
| 21 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 21 | 4611-462 | DECAL, HOOD-VENT-RR RH-GRN | 1 | $66.95 | |
| 21 | 4611-463 | DECAL, HOOD-VENT-RR LH-GRN | 1 | $35.95 | |
| 21 | 4611-398 | DECAL, HOOD-VENT-RR RH-BLK | 1 | $66.95 | |
| 21 | 4611-399 | DECAL, HOOD-VENT-RR LH-BLK | 1 | $66.95 | |
| 22 | 4611-464 | DECAL, HOOD-VENT-FRT RH-GRN | 1 | $99.95 | |
| 22 | 4611-465 | DECAL, HOOD-VENT-FRT LH-GRN | 1 | $99.95 | |
| 22 | 4611-400 | DECAL, HOOD-VENT-FRT RH-BLK | 1 | $52.95 | |
| 22 | 4611-401 | DECAL, HOOD-VENT-FRT LH-BLK | 1 | $101.95 | |
| 23 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 23 | 4611-470 | DECAL, HOOD-"ARCTIC CAT"-ORN | 1 | $94.95 | |
| 24 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 26 | 2606-414 | WINDSHIELD-SMOKE-W/O SCREENING | 1 | $203.95 | |
| 27 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 28 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 29 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 30 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 |
