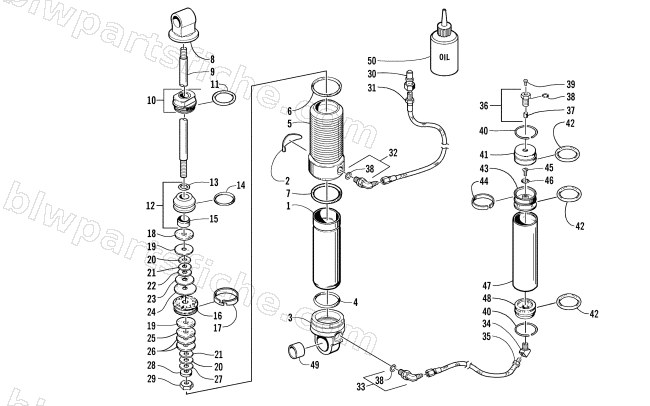

2002 Arctic Cat ZR 800 CC () — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2002 ZR 800 CC ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-712 | SHOCK, FRT ARM-EASY ADJUST | 1 | $1,242.95 | |
| 0 | 1639-770 | REBUILD KIT,A/C SHOCK (FRT ADJ SHOCK) | 1 | $85.95 | |
| 1 | 1604-827 | BODY,SHOCK - 1.625 X 5.590 | 1 | $394.95 | |
| 2 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 3 | 1604-524 | END CAP, SHOCK, EASY ADJ. | 1 | $125.95 | |
| 4 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 5 | 1604-828 | SLEEVE,EASY ADJUST - 5.500 | 1 | $286.95 | |
| 6 | 1604-528 | O-RING, ADJUSTER, BOTTOM | 1 | $1.50 | |
| 7 | 1604-529 | O-RING, ADJUSTER, TOP | 1 | $1.64 | |
| 8 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 9 | 1604-545 | ROD,SHOCK-6.670(MELONITE) | 1 | $127.95 | |
| 10 | 0704-601 | END CAP ASSEMBLY, WIDE FLANGE | 1 | $120.95 | |
| 11 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 12 | 0704-998 | PISTON, SEPARATOR-LG O-RING ASSY | 1 | $145.95 | |
| 13 | 1604-527 | O-RING, INNER, SEPERATOR PISTON | 1 | $3.30 | |
| 14 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 16 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 17 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 18 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 19 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 20 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 21 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 22 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 23 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 24 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 25 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 26 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 27 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 28 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 29 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 30 | 1604-536 | HYDRAULIC COUPLER, FEMALE THREAD | 1 | $56.95 | |
| 31 | 1604-530 | HOSE, Q D NIPPLE TO SHOCK, 30IN. | 1 | $128.95 | |
| 32 | 1604-552 | FITTING,HOSE-MODIFIED-90 DEG X FJIC | 1 | $66.95 | |
| 33 | 1604-533 | ELBOW,90 DEG-7/16-20X7/16 W/FLARE | 1 | $37.95 | |
| 34 | 1604-534 | 45DEG. STRAIGHT THREAD ELBOW, FLARE TUBE | 1 | $14.95 | |
| 35 | 1604-532 | HOSE, RESERVOIR TO SHOCK. 16IN. | 1 | $66.95 | |
| 36 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 38 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 39 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 40 | 1604-525 | CIRCLIP,RESERVOIR.063 DIA.X 1.42 ID | 1 | $6.95 | |
| 41 | 1604-520 | ENDCAP,EASY ADJ RES-7/16-20 UNF | 1 | $28.95 | |
| 42 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 43 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 44 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 45 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 46 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 47 | 1604-554 | BODY, RESERVOIR-1.625 X 5.000 (MELONITE) | 1 | $313.95 | |
| 48 | 1604-535 | ENDCAP, RESERVOIR | 1 | $28.95 | |
| 49 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 50 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
