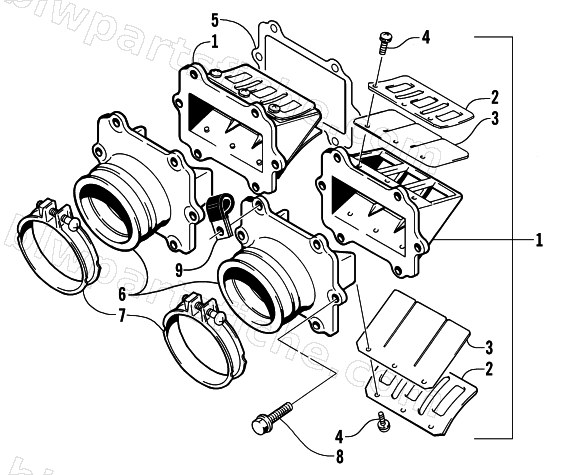

2002 Arctic Cat ZR 500 — REED VALVE ASSEMBLY
2002 ZR 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-124 | VALVE ASSY, REED | 1 | $259.95 | |
| 3 | 3004-177 | VALVE, REED | 1 | $27.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3005-415 | PIPE, INTAKE | 1 | $132.95 | |
| 7 | 3004-463 | CLAMP,M58 | 1 | $34.95 | |
| 8 | 3007-380 | BOLT | 1 | $3.16 | |
| 9 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 |
