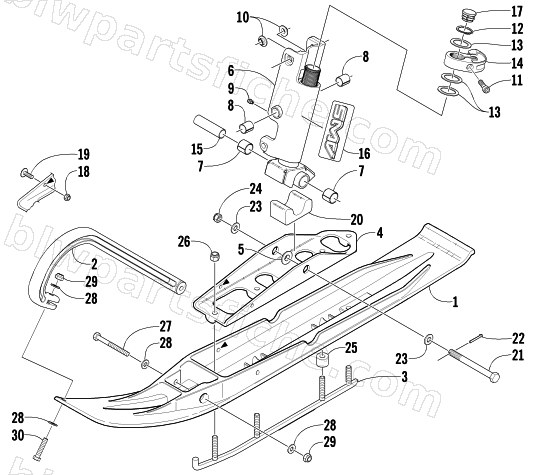

2002 Arctic Cat ZR 440 SNO PRO () — SKI AND SPINDLE ASSEMBLY
2002 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-844 | SKI,PLASTIC-GRN (USE 0703-595 BLACK) | 1 | $227.95 | |
| 2 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 3 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 4 | 0703-901 | SADDLE, SKI W/INSERTS-ASSY | 1 | $112.95 | |
| 5 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 6 | 1703-158 | SPINDLE,RH-FABR(PLATINUM) | 1 | $256.95 | |
| 6 | 1703-159 | SPINDLE,LH-FABR(PLATINUM) | 1 | $263.95 | |
| 7 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 8 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 9 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 10 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 11 | 8005-584 | SCREW, CAP-HSH 5/16-18X1.25 Z&Y | 1 | $0.65 | |
| 12 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 13 | 1603-203 | WASHER,THRUST-SPINDLE WELD'T-.060 | 1 | $2.75 | |
| 14 | 1703-413 | ARM,STEERING-SPINDLE-PTD PLT | 1 | $66.95 | |
| 15 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 16 | 4611-492 | DECAL, SPINDLE | 1 | $68.95 | |
| 17 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 18 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 20 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 21 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 22 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 23 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 24 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 25 | 1603-968 | SPACER,SADDLE | 1 | $4.95 | |
| 26 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 27 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 | |
| 28 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 29 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 30 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 |
