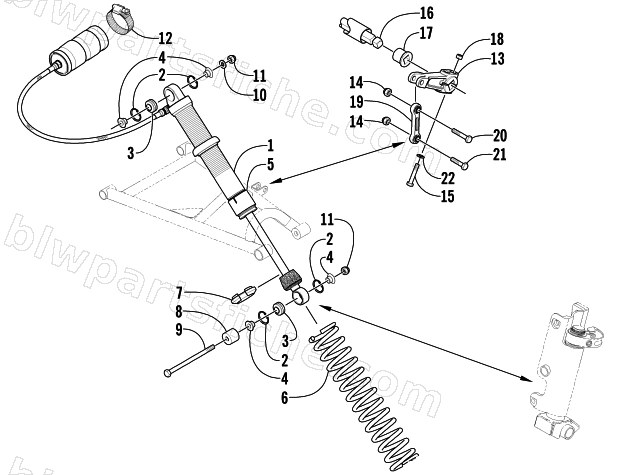

2002 Arctic Cat ZR 440 SNO PRO () — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2002 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-040 | SHOCK,SKI-RH | 1 | $686.95 | |
| 1 | 1703-041 | SHOCK,SKI-LH | 1 | $721.95 | |
| 2 | 0623-951 | RING,INTL RTNG-1.00 DIA | 1 | $6.20 | |
| 3 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 4 | 1603-423 | SPACER,SS SPHERICAL BEARING-SKI | 1 | $19.25 | |
| 5 | 1603-271 | SLEEVE,WEAR-FRT SHOCK | 1 | $20.95 | |
| 6 | 1703-087 | SPRING,COMPRESSION-YELLOW | 1 | $93.95 | |
| 7 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 8 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 9 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 10 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 11 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 12 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 13 | 0603-917 | ARM, SWAY BAR-PLASTIC | 1 | $70.95 | |
| 14 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 15 | 8002-136 | SCREW,CAP-HH 5/16-18 X1.75 G5 Z&Y | 1 | $0.95 | |
| 16 | 1703-143 | SWAY BAR,3/8" PTD BLK | 1 | $167.95 | |
| 16 | 1703-146 | SWAY BAR,7/16" PTD BLK | 1 | $133.95 | |
| 16 | 1703-144 | SWAY BAR,1/2" PTD BLK | 1 | $108.95 | |
| 16 | 1703-145 | SWAY BAR,5/8" PTD BLK | 1 | $83.95 | |
| 17 | 1603-211 | BEARING,SWAY BAR-(THIN WALL TUBE) | 1 | $4.40 | |
| 18 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 19 | 1603-414 | LINK, SWAY BAR, FIXED (PLASTIC) | 1 | $37.95 | |
| 20 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 21 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 22 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 |
