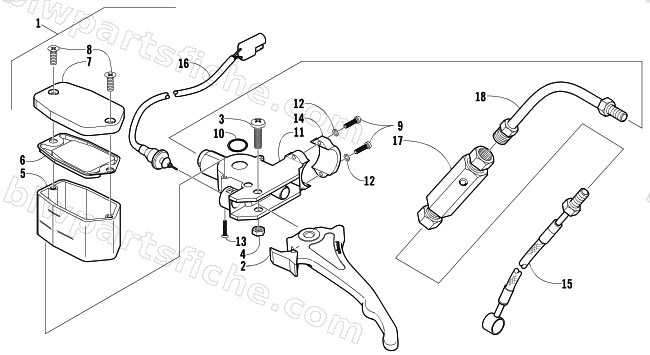

2002 Arctic Cat ZR 440 SNO PRO () — HYDRAULIC BRAKE CONTROL ASSEMBLY
2002 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1602-185 | CYLINDER, MASTER-ASSY | 1 | $461.95 | |
| 2 | 1602-246 | LEVER,BRAKE | 1 | $81.95 | |
| 3 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 4 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 5 | 0602-740 | RESERVOIR,HYD BRAKE | 1 | $60.95 | |
| 6 | 0602-741 | GASKET,COVER-MASTER CYL HYD BRAKE | 1 | $27.95 | |
| 7 | 0602-742 | COVER,MASTER CYL HYD BRAKE | 1 | $19.25 | |
| 8 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 9 | 0623-613 | SCREW,CAP-TSH-HYDRAULIC BRAKE | 1 | $2.06 | |
| 10 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 12 | 8052-212 | WASHER,LOCK-1/4 INTL TOOTH TYP A Z&Y | 1 | $0.26 | |
| 13 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 14 | 0602-907 | CLAMP,MNTG-MASTER CYL | 1 | $34.95 | |
| 15 | 1602-166 | HOSE,DUAL PISTON | 1 | $113.95 | |
| 16 | 0609-248 | SWITCH HARNESS ASSY, BRAKE HYD (0602-576 | 1 | $47.95 | |
| 17 | 1602-331 | VALVE,RISIDUAL-10 LBS. | 1 | $78.95 | |
| 18 | 1602-332 | BRAKELINE,STEEL-5" | 1 | $63.95 | |
| 18 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
