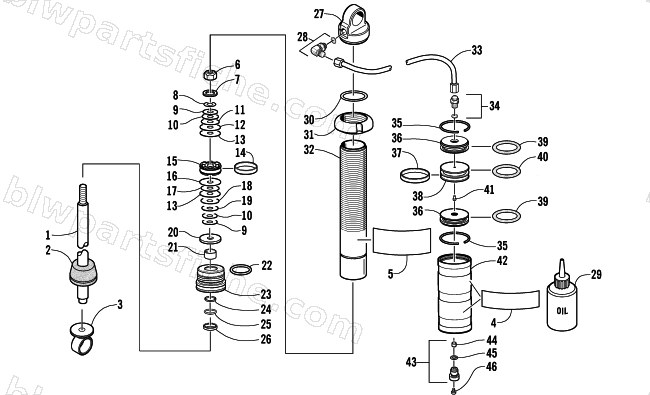

2002 Arctic Cat ZR 440 SNO PRO () — FRONT SUSPENSION SHOCK ABSORBER
2002 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1703-040 | SHOCK,SKI-RH | 1 | $686.95 | |
| 0 | 1703-041 | SHOCK,SKI-LH | 1 | $721.95 | |
| 1 | 1603-924 | SHAFT,SHOCK-9.51 | 1 | $193.95 | |
| 2 | 1603-921 | BUMPER,SHAFT | 1 | $87.95 | |
| 3 | 1603-925 | EYELET,SHOCK-W/GROOVES | 1 | $201.95 | |
| 4 | 1603-932 | DECAL,SHOCK-6.25X1.00 | 1 | $21.95 | |
| 5 | 1603-922 | DECAL,SHOCK-4.88X1.5 | 1 | $22.01 | |
| 6 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 7 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 8 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 9 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 10 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 11 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 12 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 13 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 14 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 15 | 0603-209 | PISTON,SHOCK-.081 DIA HOLE | 1 | $79.95 | |
| 16 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 17 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 18 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 19 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 20 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 21 | 1603-928 | BEARING,INTERNAL | 1 | $19.25 | |
| 22 | 1604-420 | O-RING | 1 | $4.95 | |
| 23 | 1603-926 | BEARING,W/BLEED-ASSY | 1 | $201.95 | |
| 24 | 1603-931 | SEAL,O-RING | 1 | $4.95 | |
| 25 | 1603-929 | SEAL,U-CUP | 1 | $45.95 | |
| 26 | 1603-930 | SEAL,WIPER | 1 | $20.95 | |
| 27 | 1603-937 | END CAP,SHOCK | 1 | $222.95 | |
| 28 | 2604-943 | FITTING,ELBOW-90 DEG | 1 | $36.95 | |
| 29 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 30 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 31 | 0603-805 | ADJUSTER,SPRING-SHOCK (FOX)-THREADED BOD | 1 | $35.95 | |
| 32 | 1603-923 | BODY,SHOCK-10.3 | 1 | $100.95 | |
| 33 | 1603-934 | HOSE,FEMALE-1/2-20X11 | 1 | $223.95 | |
| 34 | 1603-933 | FITTING,ADAPTOR-STRAIGHT | 1 | $68.95 | |
| 35 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 36 | 1603-936 | END CAP,RESERVOIR-CLEAR ANOD | 1 | $52.95 | |
| 37 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 38 | 0603-673 | PISTON, RES-1.834 BORE(FOX) | 1 | $113.95 | |
| 39 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 40 | 1603-236 | O-RING, .210 C.S. X 1.350 ID | 1 | $11.95 | |
| 41 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 42 | 1603-935 | RESERVOIR,3 GROOVES-BLK ANOD | 1 | $152.95 | |
| 43 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 45 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 46 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 |
