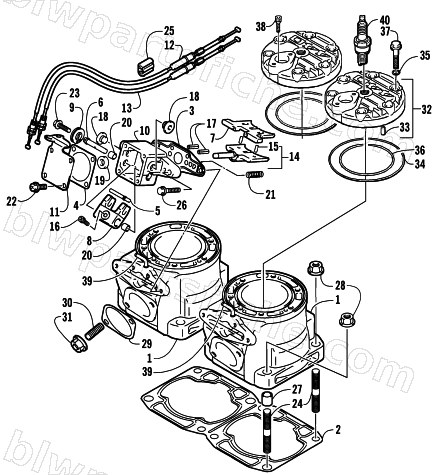

2002 Arctic Cat ZR 440 SNO PRO () — CYLINDER AND HEAD ASSEMBLY
2002 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-327 | CYLINDER '02 440 SNO PRO | 1 | $1,197.95 | |
| 2 | 3006-423 | GASKET,CYLINDER | 1 | $34.95 | |
| 3 | 3006-329 | GASKET, EXHAUST VALVE COVER | 1 | $12.35 | |
| 4 | 3006-330 | GASKET,EXH VALVE COVER '02 440 SNO PRO | 1 | $6.95 | |
| 5 | 3006-331 | PIN,EXH VALVE '02 440 SNO PRO | 1 | $34.95 | |
| 6 | 3006-332 | SHAFT,EXH VALVE '02 440 SNO PRO | 1 | $77.95 | |
| 7 | 3006-333 | VALVE,EXH MIDDLE '02 440 SNO PRO | 1 | $259.95 | |
| 8 | 3006-334 | ARM, EXH VALVE '02 440 SNO PRO | 1 | $27.95 | |
| 9 | 3006-335 | PULLEY, EXH VALVE SHAFT '02 440 SNO PRO | 1 | $58.95 | |
| 10 | 3006-337 | CASE, EXH VALVE '02 440 SNO PRO | 1 | $137.95 | |
| 11 | 3006-338 | COVER,EXH VALVE '02 440 SNO PRO | 1 | $84.95 | |
| 12 | 3006-339 | CABLE ASSY,EXH VALVE NO.1'02 440 SNO PRO | 1 | $125.95 | |
| 13 | 3006-340 | CABLE ASSY,EXH VALVE NO.2'02 440 SNO PRO | 1 | $97.95 | |
| 14 | 3006-341 | VALVE ASSY, EXH LOW '02 440 SNO PRO | 1 | $268.95 | |
| 15 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 16 | 3006-320 | BOLT,EXH VALVE SHAFT ARM '02 440 SNO PRO | 1 | $3.95 | |
| 17 | 3006-321 | PIN,5X10 '02 440 SNO PRO | 1 | $10.95 | |
| 18 | 3423-452 | PLUG, ROUND-HEAD | 1 | $26.95 | |
| 19 | 3006-322 | SEAL,OIL,12X21X7 '02 440 SNO PRO | 1 | $49.95 | |
| 20 | 3006-323 | BUSH '02 440 SNO PRO | 1 | $13.95 | |
| 22 | 0693-324 | BOLT, GOV SPRING HOOK-M5X12 | 1 | $3.69 | |
| 23 | 3004-988 | BOLT,M5X16 | 1 | $1.95 | |
| 24 | 3005-596 | STUD,BOLT | 1 | $17.87 | |
| 25 | 3005-808 | CLAMP | 1 | $6.95 | |
| 26 | 3007-380 | BOLT | 1 | $3.16 | |
| 27 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 28 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 29 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 30 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 31 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 32 | 3006-326 | HEAD ASSY,CYLINDER '02 440 SNO PRO | 1 | $327.95 | |
| 34 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 35 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 36 | 3003-224 | O RING,HEAD-INNER | 1 | $13.73 | |
| 37 | 3007-460 | BOLT | 1 | $3.85 | |
| 38 | 3004-475 | BOLT,6X25 (R/B 3007-509) | 1 | $2.95 | |
| 39 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 | |
| 40 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 |
