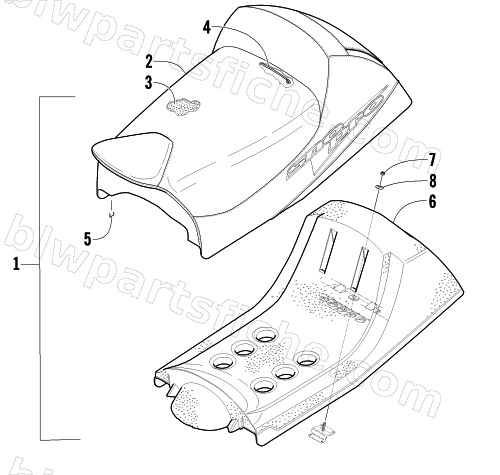

2002 Arctic Cat ZR 440 SNO PRO — SEAT ASSEMBLY
2002 ZR 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7996-012 | SEAT, MFG ASSY | 1 | $1,020.95 | |
| 2 | 1706-324 | COVER,SEAT-W/DECALS | 1 | $685.95 | |
| 3 | 0617-418 | FOAM, SEAT-UPPER(77-82ILD) | 1 | $104.95 | |
| 4 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 6 | 0617-422 | FOAM, SEAT-LWR | 1 | $142.95 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 |
