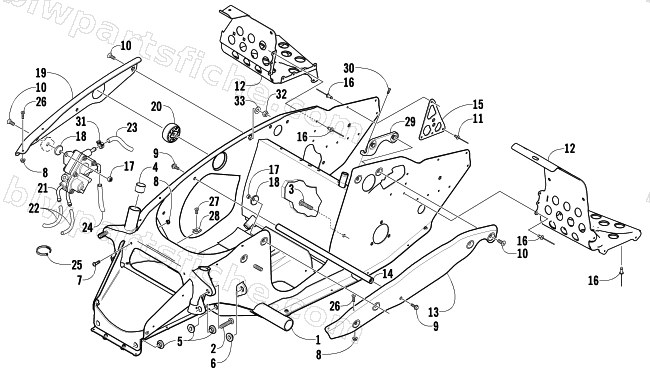

2002 Arctic Cat ZR 440 SNO PRO — FRONT FRAME AND FOOTREST ASSEMBLY
2002 ZR 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-637 | FRONT END-FABR | 1 | $1,717.95 | |
| 2 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 3 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 4 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 5 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 6 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 7 | 0623-182 | SCREW,CAP-HSBH 10-32 X .875 | 1 | $0.26 | |
| 8 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 9 | 8002-129 | SCREW,CAP-HH 5/16-18 X.625 G5 Z&Y | 1 | $1.50 | |
| 10 | 0623-962 | SCREW,MACH HSFH 1/4-20X.75 Z&Y | 1 | $1.09 | |
| 11 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 12 | 2606-334 | FOOTREST,RH | 1 | $128.95 | |
| 12 | 2606-335 | FOOTREST,LH | 1 | $147.95 | |
| 13 | 2606-855 | BRACE,SIDE PLATE-UPR LH | 1 | $77.95 | |
| 14 | 2606-695 | CROSSBRACE,SIDE PLATE | 1 | $61.95 | |
| 15 | 2706-142 | PLATE,BACKING-FRONT ARM-PTD BLK | 1 | $11.95 | |
| 16 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 17 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0623-943 | WASHER,SIDE PLATE BRACE | 1 | $30.95 | |
| 19 | 2606-595 | BRACE,SIDE PLATE - RH | 1 | $58.95 | |
| 20 | 0608-364 | MOUNT,ENGINE-45 DURO | 1 | $65.95 | |
| 21 | 1670-269 | PUMP, FUEL - LAYDOWN | 1 | $185.95 | |
| 22 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 22 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 23 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 23 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 24 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 25 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 0623-739 | SCREW,HSFH- 10-32 X .687 (PLAIN) | 1 | $3.95 | |
| 27 | 0623-212 | SCREW,FLAT SOC/HD-1/4-20X9/16 | 1 | $3.95 | |
| 28 | 0623-757 | NUT,U 1/4-20 (SHORT .50) | 1 | $1.78 | |
| 29 | 2706-068 | BRACE,DROPCASE-W/AVK NUTS | 1 | $77.95 | |
| 29 | 2706-075 | BRACE,SIDE PLATE-LH-W/AVK NUTS | 1 | $68.95 | |
| 30 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 31 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 32 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 33 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
