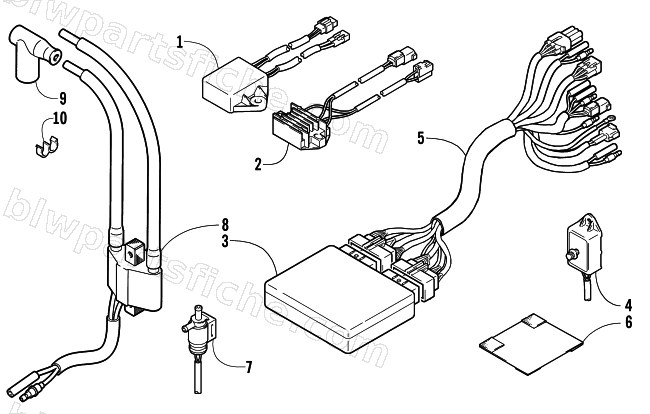

2002 Arctic Cat ZR 440 SNO PRO — ELECTRICAL
2002 ZR 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-377 | CONDENSER,EXH VALVE '02 440 L/C PRO | 1 | $324.95 | |
| 2 | 3006-378 | REGULATOR,EXH VALVE '02 440 L/C PRO | 1 | $430.95 | |
| 3 | 3006-365 | CDI BOX '02 440 SNO PRO | 1 | $1,419.95 | |
| 4 | 3005-932 | TIMING CONTROL UNIT | 1 | $314.95 | |
| 5 | 0686-840 | HARNESS,CDI | 1 | $186.95 | |
| 6 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 7 | 3006-379 | SOLENOID,VALVE ASSY '02 440 L/C PRO | 1 | $279.95 | |
| 8 | 3006-381 | COIL ASSY,IGNITION '02 440 L/C PRO | 1 | $275.95 | |
| 9 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 10 | 3005-387 | CLIP | 1 | $4.40 |
