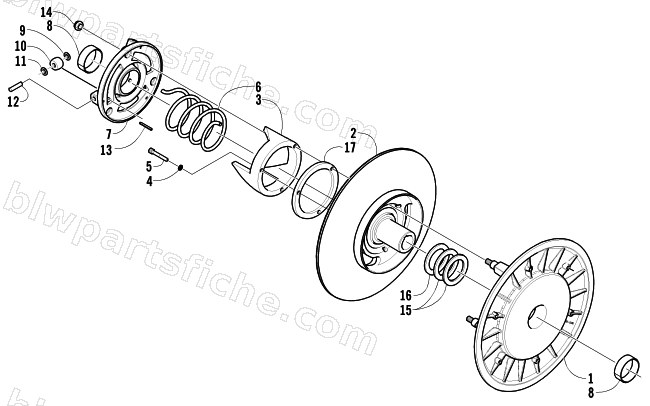

2002 Arctic Cat ZR 440 SNO PRO — DRIVEN CLUTCH
2002 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-140 | CLUTCH,DRIVEN-W/O PLATES(55-52/CGRN) | 1 | $644.95 | |
| 2 | 0748-588 | SHEAVE,STATIONARY-MACH | 1 | $679.95 | |
| 3 | 0648-130 | BRKT, TORQUE - 55-52 DEG | 1 | $89.95 | |
| 4 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 5 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 6 | 0748-025 | SPRING,DRIVEN-TEAM ARC GRN (96/157 #) | 1 | $42.95 | |
| 7 | 0748-589 | PLATE,ROLLER-ASSY | 1 | $117.95 | |
| 8 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 9 | 0648-431 | WASHER,SPRING-.250X.006 | 1 | $0.95 | |
| 10 | 0648-079 | ROLLER,DRIVEN CLUTCH-PLASTIC | 1 | $15.11 | |
| 11 | 0648-082 | WASHER,THRUST-PLASTIC ROLLER | 1 | $1.92 | |
| 12 | 0648-097 | PIN,CAM ROLLER | 1 | $2.88 | |
| 13 | 8070-224 | PIN,SPRING-1/8 X 1 SLOTTED Z&Y | 1 | $0.40 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 15 | 0148-198 | WASHER,FLAT-1.51 X 2.10 X .030 | 1 | $1.64 | |
| 15 | 0148-199 | WASHER,FLAT-1.51 X 2.10 X .060 | 1 | $3.16 | |
| 16 | 0623-852 | WSHR, FLAT,1.51 X 2.10 X .010 | 1 | $2.95 | |
| 17 | 0148-237 | SPACER,DRIVEN CLUTCH | 1 | $42.95 |
