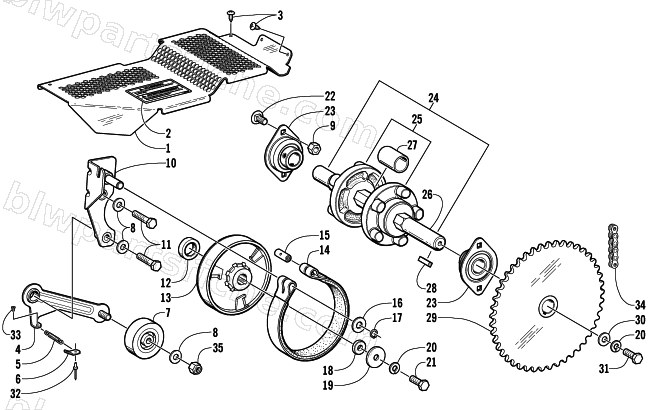

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
2002 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1612-180 | R/B 0712-915 | 1 | $29.95 | |
| 2 | 3611-754 | DECAL, WARNING,GUARD | 1 | $3.44 | |
| 3 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 4 | 0702-376 | TENSIONER,CHAIN-PTD BLK | 1 | $33.95 | |
| 5 | 1602-066 | SPRING, TENSION,CHAIN | 1 | $30.95 | |
| 6 | 2606-021 | TAB, SPRING,RETAINER | 1 | $5.09 | |
| 7 | 1602-065 | ROLLER, CHAIN,TIGHTENER | 1 | $86.95 | |
| 8 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 0702-360 | BRACKET,BRAKE-PTD BLK | 1 | $57.95 | |
| 11 | 8004-135 | SCREW,CAP-HH 5/16-24 X1.50 G5 Z&Y | 1 | $1.09 | |
| 12 | 1602-026 | SPACER,CLUTCH-INNER | 1 | $15.11 | |
| 13 | 1602-020 | R/B 7639-193 | 1 | $116.95 | |
| 14 | 1602-021 | BAND,BRAKE | 1 | $73.95 | |
| 15 | 1602-049 | PIN,RETAINER-BRAKE CABLE | 1 | $13.73 | |
| 16 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 17 | 0623-821 | SNAP RING,EXTL-3/8 DIA | 1 | $0.95 | |
| 18 | 1602-027 | SPACER,CLUTCH-OUTER | 1 | $15.11 | |
| 19 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 20 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 21 | 8004-132 | SCREW,CAP-HH 5/16-24 X1.00 G5 Z&Y | 1 | $0.95 | |
| 22 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 23 | 1602-023 | BEARING,DRIVE SPROCKET-3/4" | 1 | $112.95 | |
| 24 | 0728-167 | TRACK DRIVE ASSY-120 | 1 | $266.95 | |
| 25 | 1602-117 | SPROCKET, TRACK DRIVE | 1 | $32.95 | |
| 26 | 1602-017 | R/B 1602-850 | 1 | $97.95 | |
| 27 | 1602-148 | R/B 3602-236 | 1 | $21.95 | |
| 28 | 0623-823 | KEY,3/16X3/16X.90 | 1 | $2.47 | |
| 29 | 2602-546 | SPROCKET,CHAIN-TRACK DRIVE-45T | 1 | $129.95 | |
| 31 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 32 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 33 | 0623-868 | BUSHING, SNAP | 1 | $1.09 | |
| 34 | 2602-333 | CHAIN, ROLLER - DRIVE | 1 | $39.95 | |
| 35 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 |
