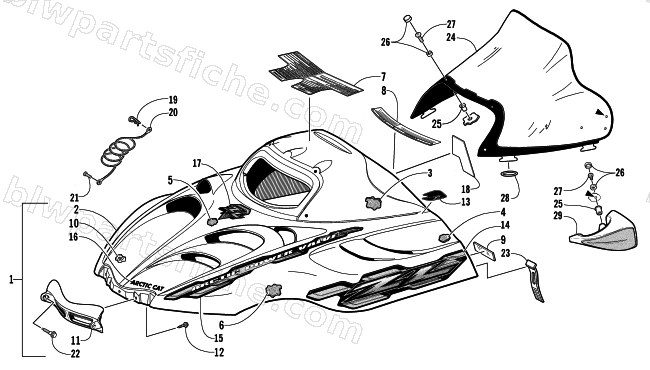

HOOD AND WINDSHIELD ASSEMBLY
2002 ZL 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-042 | HOOD W/DECALS-02 ZL 500 | 1 | $1,243.95 | |
| 1 | 1718-039 | HOOD-W/ DECALS | 1 | $1,185.95 | |
| 2 | 0718-839 | HOOD W/O DECALS-00 ZR | 1 | $957.29 | |
| 2 | 1718-093 | HOOD W/O DECALS-02 ZL ESR EFI | 1 | $1,153.95 | |
| 4 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 13 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 | |
| 14 | 4611-136 | DECAL, HOOD-LWR RH | 1 | $101.95 | |
| 14 | 4611-137 | DECAL, HOOD-LWR LH | 1 | $101.95 | |
| 14 | 4611-174 | DECAL, HOOD LWR RH | 1 | $108.95 | |
| 14 | 4611-175 | DECAL,HOOD LWR LH | 1 | $110.95 | |
| 15 | 4611-190 | DECAL, HOOD-UPR RH | 1 | $87.95 | |
| 15 | 4611-189 | DECAL, HOOD-UPR LH | 1 | $87.95 | |
| 15 | 4611-176 | DECAL, HOOD-UPR RH | 1 | $85.95 | |
| 15 | 4611-177 | DECAL, HOOD-UPR LH | 1 | $89.95 | |
| 16 | 3611-186 | DECAL, HOOD-"ARCTIC CAT"-GRN-CURVED | 1 | $21.95 | |
| 16 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 17 | 4611-372 | DECAL, HOOD CREST | 1 | $82.95 | |
| 17 | 4611-389 | DECAL, HOOD-CREST-ZL ESR | 1 | $67.95 | |
| 18 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 20 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 22 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 23 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 24 | 2606-432 | WINDSHIELD, SMOKE (MED) | 1 | $200.95 | |
| 24 | 2606-366 | WINDSHIELD, MED-W/MIRROR HOLES | 1 | $200.95 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 27 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 28 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
