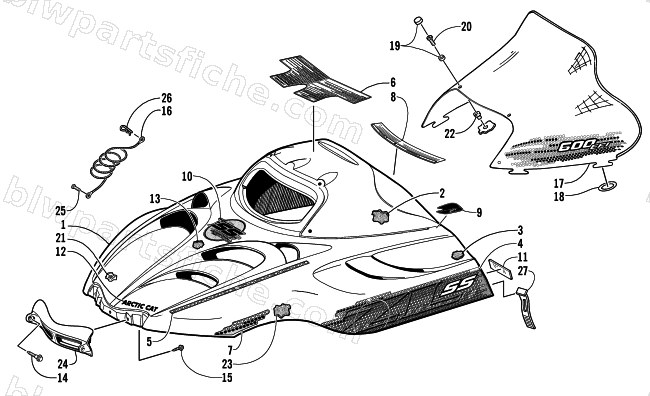

2002 Arctic Cat ZL 600 EFI SS — HOOD AND WINDSHIELD ASSEMBLY
2002 ZL 600 EFI SS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-077 | HOOD W/O DECALS-02 ZL SS | 1 | $1,153.95 | |
| 1 | 1718-026 | HOOD W/DECALS-01 600 EFI SS-LIMITED | 1 | $1,248.95 | |
| 3 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 3 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 4 | 4611-126 | DECAL, HOOD-LOWER-RH | 1 | $244.95 | |
| 4 | 4611-125 | DECAL,HOOD-LOWER-LH | 1 | $99.95 | |
| 5 | 4611-127 | DECAL,HOOD UPR-BRNT ORN | 1 | $91.95 | |
| 6 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 7 | 4611-284 | DECAL, HOOD-FRT LWR RH | 1 | $60.95 | |
| 7 | 4611-285 | DECAL, HOOD-FRT LWR LH | 1 | $60.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 9 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 | |
| 10 | 4611-129 | DECAL, HOOD CREST | 1 | $40.95 | |
| 11 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 12 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 13 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 14 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 21 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 21 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 23 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 24 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 27 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 |
