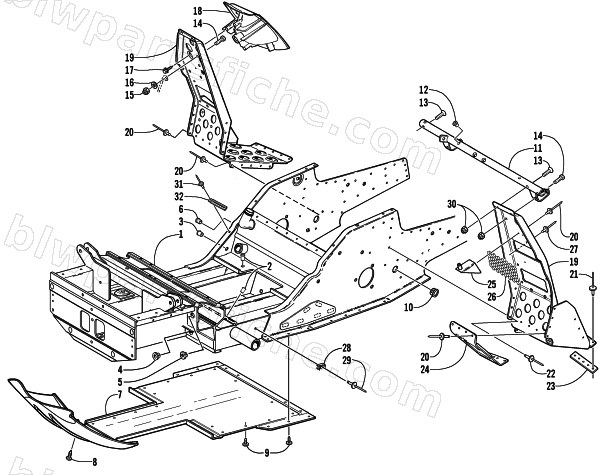

2002 Arctic Cat ZL 600 EFI SS () — FRONT FRAME AND FOOTREST ASSEMBLY
2002 ZL 600 EFI SS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-621 | FRT END-02 ZL 600 EFI SS | 1 | $1,439.95 | |
| 2 | 0623-699 | INSERT,THREADED-.375 X 16 (ALS4-616-312) | 1 | $3.02 | |
| 3 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 4 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 6 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 7 | 2606-320 | BELLY PAN - CENTER-GRN | 1 | $153.95 | |
| 7 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 1623-002 | BUSHING, SNAP -.875 ID-PLASTIC | 1 | $1.37 | |
| 11 | 0705-426 | SUPPORT, STEERING-ASSY | 1 | $91.95 | |
| 12 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 13 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 14 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 15 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 18 | 1606-062 | CUP, RECOIL ROPE | 1 | $22.01 | |
| 19 | 2606-444 | FOOTREST, RH | 1 | $100.95 | |
| 19 | 2606-445 | FOOTREST, LH | 1 | $100.95 | |
| 20 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 21 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 22 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 23 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 24 | 2606-458 | PLATE, BACKING-FOOTREST-RH | 1 | $14.95 | |
| 24 | 2606-459 | PLATE, BACKING-FOOTREST-LH | 1 | $13.95 | |
| 25 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 26 | 2706-133 | SCREEN,GUARD-PTD BLK | 1 | $12.95 | |
| 27 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 28 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 29 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 30 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 31 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 32 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
