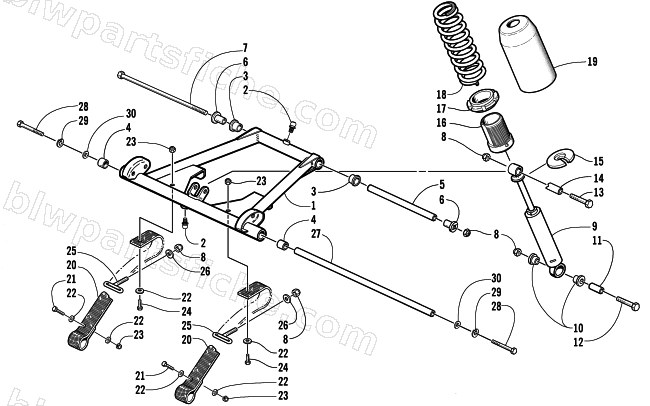

2002 Arctic Cat ZL 600 EFI (ESR) — REAR SUSPENSION FRONT ARM ASSEMBLY
2002 ZL 600 EFI (ESR)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-628 | ARM,FRONT-FABR(BLK) | 1 | $248.95 | |
| 2 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 3 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 6 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 7 | 0623-782 | SCREW,CAP-HH 3/8-16X10 GR 8 Z&Y | 1 | $13.73 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 1604-369 | SHOCK,FRONT ARM | 1 | $157.95 | |
| 10 | 1604-384 | BUSHING, EYELET - ARVIN SHOCK | 1 | $3.99 | |
| 11 | 1604-329 | AXLE,SHOCK PIVOT-98EXT | 1 | $39.95 | |
| 12 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 14 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 15 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 16 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 17 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 18 | 1603-018 | SPRING,COMPRESSION - 90#-PTD BLK | 1 | $66.95 | |
| 19 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 20 | 1604-458 | STRAP,LIMITER-FRONT | 1 | $21.95 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 23 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 25 | 0704-256 | ADJUSTER,FRT.ARM-PTD BLK | 1 | $16.49 | |
| 26 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 27 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 28 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 29 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 30 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
