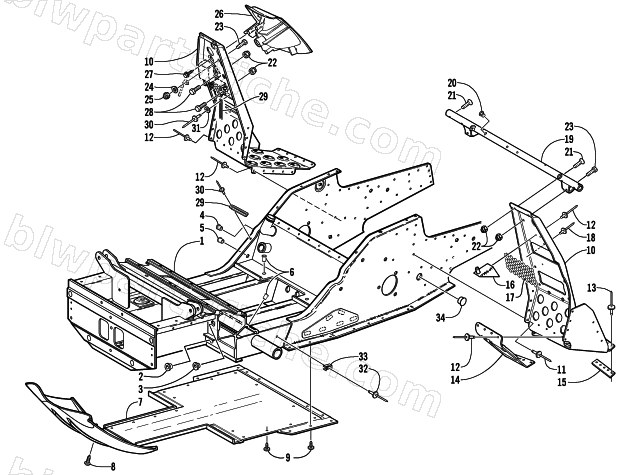

2002 Arctic Cat ZL 500 — FRONT FRAME AND FOOTREST ASSEMBLY
2002 ZL 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-617 | CHASSIS, FRT END-PTD-S/P ASSY | 1 | $1,240.95 | |
| 2 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 3 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 4 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 5 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 6 | 0623-699 | INSERT,THREADED-.375 X 16 (ALS4-616-312) | 1 | $3.02 | |
| 7 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 1706-884 | FOOTREST, RH-PTD BLK(2606-444) | 1 | $130.95 | |
| 10 | 1706-885 | FOOTREST, LH-PTD BLK(2606-445) | 1 | $140.95 | |
| 11 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 12 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 13 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 14 | 1706-886 | PLATE,BACK-FTREST-RH-BLK(2606-458) | 1 | $19.95 | |
| 14 | 1706-887 | PLATE,BACK-FTREST-LH-BLK(2606-459) | 1 | $19.95 | |
| 15 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 16 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 17 | 2706-133 | SCREEN,GUARD-PTD BLK | 1 | $12.95 | |
| 18 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 19 | 0705-426 | SUPPORT, STEERING-ASSY | 1 | $91.95 | |
| 20 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 21 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 22 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 24 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 25 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 26 | 1606-062 | CUP, RECOIL ROPE | 1 | $22.01 | |
| 27 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 28 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 29 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 30 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 31 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 32 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 33 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 34 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 |
