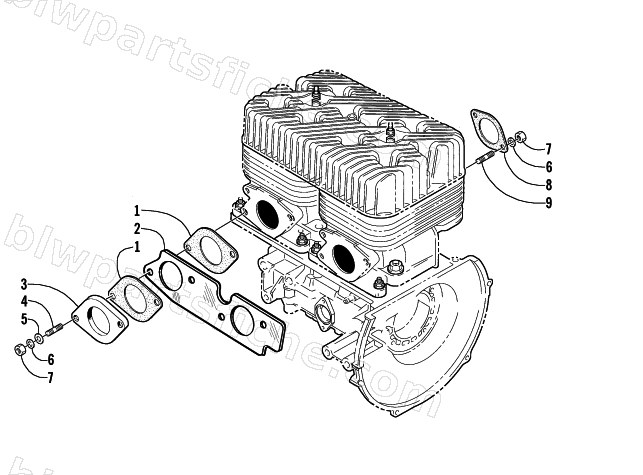

2002 Arctic Cat Z 570 SS — INTAKE ASSEMBLY
2002 Z 570 SS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-615 | GASKET,INTAKE MANIFOLD-02 570 L/C | 1 | $17.87 | |
| 2 | 1670-418 | DEFLECTOR, HEAT - INTAKE | 1 | $6.95 | |
| 3 | 3006-075 | INSULATOR,INTAKE MANIFOLD '02 570 F/C | 1 | $32.95 | |
| 4 | 3007-481 | BOLT,STUD | 1 | $3.16 | |
| 5 | 3423-204 | WASHER | 1 | $1.95 | |
| 6 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 7 | 3007-416 | NUT | 1 | $2.75 | |
| 8 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 9 | 3007-419 | STUD BOLT | 1 | $4.95 |
