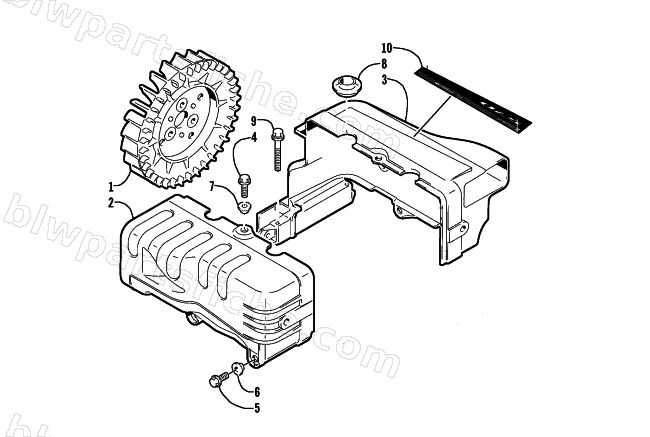

2002 Arctic Cat Z 570 — COOLING FAN AND CYLINDER COWLING ASSEMBLY
2002 Z 570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-016 | FAN ASSY,COOLING | 1 | $136.95 | |
| 2 | 3006-017 | COWLING ASSY,VENTILATION FRONT | 1 | $117.95 | |
| 3 | 3006-018 | COWLING ASSY,VENTILATION REAR | 1 | $137.95 | |
| 4 | 3007-484 | BOLT (6X25) | 1 | $2.95 | |
| 5 | 3006-087 | BOLT,(6X20) '02 570 F/C | 1 | $3.16 | |
| 6 | 3006-088 | SPACER,'02 570 F/C | 1 | $10.97 | |
| 7 | 3006-089 | SPACER,'02 570 F/C | 1 | $15.11 | |
| 8 | 3005-996 | GROMMET | 1 | $7.29 | |
| 9 | 3007-485 | BOLT | 1 | $4.68 | |
| 10 | 4611-448 | DECAL,ENG-570 | 1 | $65.95 |
