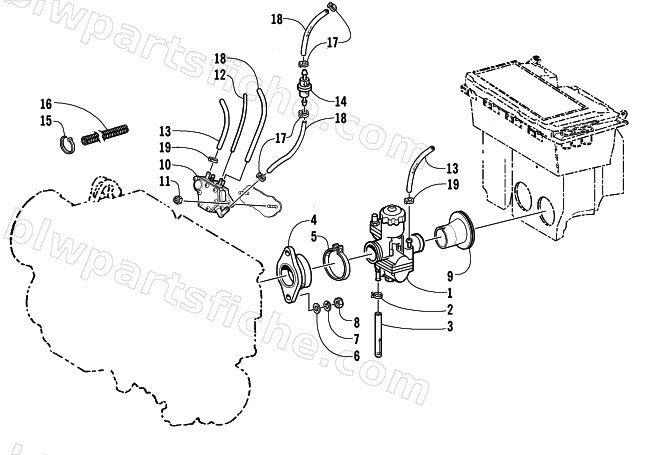

CARBURETOR AND FUEL PUMP ASSEMBLY
2002 Z 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-551 | CARB-ASSY-VM-570 F/C | 1 | $1,157.95 | |
| 2 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 3 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 4 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 5 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 6 | 3423-204 | WASHER | 1 | $1.95 | |
| 7 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 8 | 3007-416 | NUT | 1 | $2.75 | |
| 9 | 1670-310 | BOOT, AIR SILENCER-RH | 1 | $33.95 | |
| 10 | 1670-262 | PUMP,FUEL - (ATP-1-100) | 1 | $75.95 | |
| 11 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 | |
| 12 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 13 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 13 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 14 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 15 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 16 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 17 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 18 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 18 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 19 | 0623-502 | CLAMP,HOSE (SNP01.5) | 1 | $1.59 |
