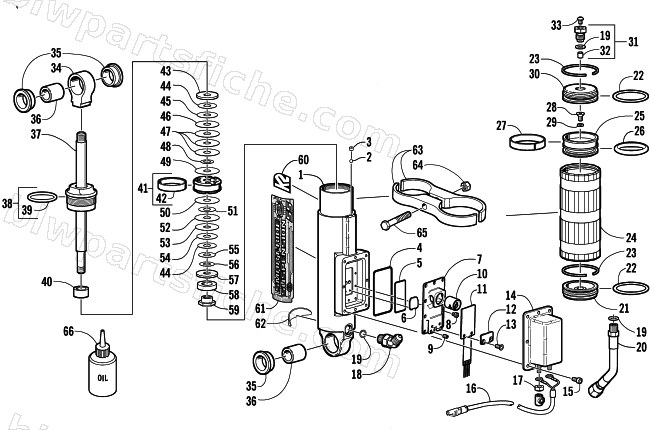

2002 Arctic Cat THUNDERCAT — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2002 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-869 | SHOCK, REAR ARM-ASSY "SS" | 1 | $1,798.95 | |
| 1 | 2604-094 | BODY, SHOCK-REAR ARM (SS) | 1 | $352.95 | |
| 2 | 1604-653 | BALL,PORT PLUG-SS | 1 | $2.95 | |
| 3 | 1604-652 | PLUG,PORT- M5-1.0 X 4.0 | 1 | $1.50 | |
| 4 | 1604-654 | O-RING,COVER-SHOCK BODY | 1 | $2.88 | |
| 5 | 1604-625 | O-RING,BENDER HOLDER | 1 | $3.95 | |
| 6 | 1604-622 | VALVE,BACK FLOW-16098 | 1 | $6.47 | |
| 7 | 1604-623 | HOLDER,BENDER-16538-MACH | 1 | $41.95 | |
| 8 | 0623-860 | SCREW,AH-BENDER HOLDER | 1 | $0.85 | |
| 9 | 0623-861 | SCREW,SET-HS CP M3-0.5X4.0 LG SS | 1 | $0.40 | |
| 10 | 1604-627 | VALVE,BENDER-MACH-16539 | 1 | $19.25 | |
| 11 | 1604-624 | BENDER | 1 | $332.95 | |
| 12 | 1604-626 | CLAMP,PLATE-BENDER-16265 | 1 | $5.92 | |
| 13 | 0623-862 | SCREW,MACH-PHFH M2.5-0.45X5.0 LG SS | 1 | $0.40 | |
| 14 | 1604-760 | COVER, SS ELECTRICAL-REAR-ASSY | 1 | $479.95 | |
| 15 | 0623-864 | SCREW,CAP-HSH M4-0.7X10.0 LG SS | 1 | $0.95 | |
| 16 | 0686-855 | HARNESS, STUB-75" SMART SHOCK | 1 | $74.95 | |
| 17 | 0623-993 | NUT, LOCK - NSL6-32UNC SS | 1 | $0.85 | |
| 18 | 1604-761 | ELBOW,45 DEG-JIC | 1 | $53.95 | |
| 19 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 20 | 1604-729 | HOSE, RESERVOIR 4.43" | 1 | $75.95 | |
| 21 | 1604-728 | END CAP,RESERVOIR-1/8-27 NPT | 1 | $40.95 | |
| 22 | 0603-968 | O-RING - .139 X 1.484 | 1 | $2.75 | |
| 23 | 0603-985 | CIRCLIP,RESERVOIR - .063 DIA X 1.77 ID | 1 | $1.95 | |
| 24 | 1603-315 | BODY,RESERVOIR-4.75" GROOVED | 1 | $74.95 | |
| 25 | 0603-986 | PISTON, FLOATING - RESERVIOR | 1 | $79.95 | |
| 26 | 0603-987 | O-RING - .210 X 1.350 | 1 | $8.21 | |
| 27 | 0603-988 | STRAP, PISTON - FLOATING - TEFLON | 1 | $34.95 | |
| 28 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 29 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 30 | 0603-989 | ENDCAP, RESERVOIR | 1 | $114.95 | |
| 31 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 33 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 34 | 1603-503 | EYELET,SHOCK - 1.000 DIA X 1.137 LGTH | 1 | $26.95 | |
| 35 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 36 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 37 | 1604-660 | ROD, SHOCK - 7.685 SPECIAL | 1 | $150.95 | |
| 38 | 0704-382 | END CAP, LONG - ASSY | 1 | $56.95 | |
| 39 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 40 | 1604-364 | SPACER, SHAFT (.530 ID X .75 OD X .375) | 1 | $6.95 | |
| 41 | 1604-640 | PISTON, BLANK,W/TEFLON BAND STRAP | 1 | $34.95 | |
| 42 | 1604-643 | BAND,TEFLON-ENDLESS | 1 | $22.01 | |
| 43 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 44 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 45 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 46 | 2603-127 | VALVE,SHOCK-1.250 DIA X .015 | 1 | $5.95 | |
| 47 | 2603-137 | VALVE,SHOCK-1.300 DIA X .015 | 1 | $5.95 | |
| 48 | 2603-044 | VALVE,SHOCK- .700 DIA X .008 | 1 | $5.95 | |
| 49 | 2603-134 | VALVE,SHOCK-1.300 DIA X .008 | 1 | $5.95 | |
| 50 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 51 | 2603-062 | VALVE,SHOCK- .900 DIA X .006 | 1 | $5.95 | |
| 52 | 2603-135 | VALVE,SHOCK-1.300 DIA X .010 | 1 | $5.95 | |
| 53 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 54 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 55 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 56 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 57 | 0624-523 | WASHER,CAP-SS | 1 | $3.16 | |
| 58 | 1604-632 | MAGNET-ION-13 | 1 | $69.95 | |
| 59 | 0624-522 | NUT,SPECIAL-SS | 1 | $10.97 | |
| 60 | 4611-569 | DECAL, K2 SHOCK | 1 | $6.95 | |
| 61 | 4611-199 | DECAL, SMART-RIDE SUSPENSION | 1 | $63.95 | |
| 62 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 63 | 2604-085 | CLAMP, SHOCK/RESERVOIR - FORMED | 1 | $50.95 | |
| 64 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 65 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 66 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
