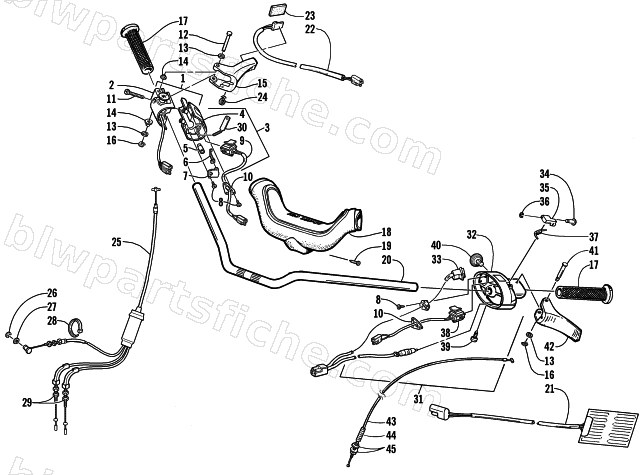

2002 Arctic Cat PANTHER 440 () — HANDLEBAR AND CONTROLS
2002 PANTHER 440 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0609-493 | CONTROL,TH-STOP SWITCH HALF | 1 | $106.95 | |
| 5 | 0609-497 | PLUG,RUBBER-IDLE SWITCH | 1 | $14.95 | |
| 6 | 0609-498 | CLIP,RETAINING-TH CABLE | 1 | $16.95 | |
| 7 | 0609-496 | PLATE,RETAINER-IDLE SWITCH | 1 | $14.95 | |
| 8 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 10 | 0609-378 | PLATE, SWITCH-H/W&T/W RETAINER | 1 | $11.95 | |
| 11 | 0609-492 | SCREW,RETAINING-M5X35 | 1 | $4.95 | |
| 12 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 13 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 14 | 0609-501 | WASHER,SHOULDER-THROTTLE | 1 | $12.35 | |
| 15 | 0609-363 | LEVER, TH-34MM W/O IDLE SWITCH | 1 | $31.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 17 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 18 | 0616-995 | PAD, HANDLEBAR | 1 | $81.95 | |
| 19 | 0623-128 | SCREW,SELF TAP-TRH TYPE II | 1 | $0.95 | |
| 20 | 0705-361 | HANDLEBAR - PTD BLK | 1 | $73.95 | |
| 21 | 0609-552 | ELEMENT,HW-ON/OFF W/O CAP(-374) | 1 | $55.95 | |
| 22 | 0609-372 | ELEMENT, THUMBWARMER-ON/OFF | 1 | $62.95 | |
| 23 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 24 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 25 | 0687-059 | CABLE,THROTTLE-DUAL VM34 | 1 | $128.95 | |
| 26 | 0124-057 | E-RING | 1 | $1.64 | |
| 27 | 0124-056 | WASHER | 1 | $13.73 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 30 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 | |
| 32 | 0609-478 | CONTROL,BR-MECH HSG W/O LVR (ON/OFF DECA | 1 | $97.95 | |
| 33 | 0609-452 | SWITCH ASS'Y,DIM/BRAKE(MECH)-29.5MM | 1 | $92.95 | |
| 34 | 0609-050 | PIN,RETAINING PARK | 1 | $1.95 | |
| 35 | 0609-314 | ACTUATOR, BRAKE-PARKING | 1 | $15.11 | |
| 36 | 0609-051 | RING,RETAINING PRK | 1 | $1.95 | |
| 37 | 0609-313 | SPRING, BRAKE-PARKING | 1 | $3.16 | |
| 38 | 0609-385 | SWITCH ASSY,ON/OFF HW-BR (LH) | 1 | $70.95 | |
| 39 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 40 | 0609-474 | KNOB, DIMMER SWITCH | 1 | $13.73 | |
| 41 | 0609-315 | AXLE, LEVER-BRAKE | 1 | $10.95 | |
| 42 | 0609-266 | LEVER, BRAKE | 1 | $32.95 | |
| 43 | 0687-089 | CABLE,BRAKE-AWS5 | 1 | $73.95 | |
| 44 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 45 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 |
