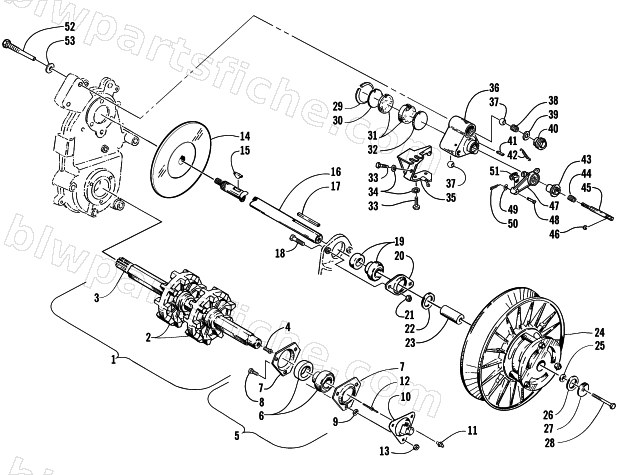

2002 Arctic Cat PANTHER 440 () — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2002 PANTHER 440 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-042 | TRACK DRIVE ASSY | 1 | $473.95 | |
| 2 | 0602-992 | SPROCKET,DRIVE-9T-INNER(1/2" RING) | 1 | $70.95 | |
| 3 | 0602-487 | SHAFT,DRIVE-HEX | 1 | $412.95 | |
| 4 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 5 | 0702-410 | PLATE,FLANGE-BEARING-ASSY | 1 | $117.95 | |
| 6 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 7 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 8 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 9 | 0623-810 | RING,SOLDER-5/16 | 1 | $4.95 | |
| 10 | 0720-005 | ADAPTER,DRIVE-SPEEDOMETER-FAB. 47 | 1 | $96.95 | |
| 11 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 12 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 13 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 14 | 1602-206 | DISC, BRAKE-8-1/4 | 1 | $180.95 | |
| 14 | 0602-434 | HUB,BRAKE | 1 | $183.95 | |
| 15 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 15 | 0602-551 | DISC,BRAKE | 1 | $125.95 | |
| 16 | 0702-468 | SHAFT,DRIVEN-PTD BLK | 1 | $180.95 | |
| 16 | 0623-459 | SCREW,SOCKET HD 10-32X3/4 | 1 | $1.95 | |
| 17 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 17 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 18 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 19 | 1602-099 | BEARING, RELUBRICATABLE - 1.00 DRIVEN SH | 1 | $54.95 | |
| 20 | 0602-892 | FLANGE,BRG-TWO MTG HOLE | 1 | $16.95 | |
| 21 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 22 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 22 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 23 | 0648-066 | SHAFT, STUB 2.100" | 1 | $28.95 | |
| 24 | 0726-101 | CLUTCH,DRIVEN-ROLLER | 1 | $622.95 | |
| 24 | 0726-083 | CLUTCH,DRIVEN - ASSY | 1 | $395.95 | |
| 25 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 26 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 28 | 8002-142 | SCREW,CAP-HH 5/16-18 X3.25 G5 Z&Y | 1 | $0.65 | |
| 29 | 0602-502 | SNAP RING-1.88 | 1 | $1.39 | |
| 30 | 0602-775 | PLATE,BACKING-STATIONARY PAD | 1 | $16.49 | |
| 31 | 0702-264 | PAD SET,BRAKE | 1 | $69.95 | |
| 32 | 0602-716 | PISTON,BRAKE PAD | 1 | $34.95 | |
| 33 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 34 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 35 | 0702-283 | BRKT,BRAKE CABLE-PTD BLK | 1 | $40.95 | |
| 36 | 0602-505 | CALIPER,BRAKE-MACHINED | 1 | $152.95 | |
| 37 | 0602-503 | BALL,ALIGNMENT-BRAKE CALIPER | 1 | $36.95 | |
| 38 | 0602-618 | SPRING,COMPRESSION | 1 | $71.95 | |
| 39 | 0623-450 | WASHER, FLAT .380X.938 | 1 | $0.75 | |
| 40 | 0602-622 | NUT,BRAKE CALIPER | 1 | $5.95 | |
| 41 | 8070-316 | PIN,SPRING-3/16 X 1-1/4 SLOTTED P&O | 1 | $1.92 | |
| 42 | 0602-779 | SPRING,RETURN-ACTUATOR ARM | 1 | $70.95 | |
| 43 | 1602-024 | KNOB, BRAKE ADJUSTMENT | 1 | $16.95 | |
| 44 | 0602-616 | SPRING,COMPRESSION-BRAKE | 1 | $9.59 | |
| 45 | 0602-515 | SCREW,BRAKE ADJUSTMENT | 1 | $13.73 | |
| 46 | 0124-057 | E-RING | 1 | $1.64 | |
| 47 | 1602-022 | ARM, ACTUATOR - BRAKE CALIPER | 1 | $75.95 | |
| 48 | 0602-509 | PIN,CLEVIS-BRAKE | 1 | $3.30 | |
| 49 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 51 | 0602-508 | CLEVIS,BRAKE CABLE | 1 | $20.63 | |
| 52 | 0602-386 | BOLT,MTNG.-BRAKE CALIPER | 1 | $16.95 | |
| 53 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 | |
| 57 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 |
