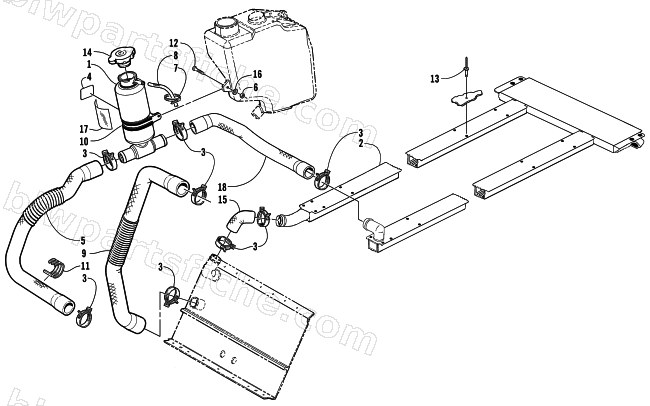

2002 Arctic Cat PANTERA 800 EFI ESR () — COOLING ASSEMBLY
2002 PANTERA 800 EFI ESR ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-396 | TANK,COOLANT-'ZR' STYLE | 1 | $41.95 | |
| 2 | 1706-919 | HEAT EXCH,REAR- WELD'T | 1 | $495.95 | |
| 4 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 5 | 0610-474 | HOSE,COOLANT-TANK/PUMP-W/PROTECTOR | 1 | $73.95 | |
| 6 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 8 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 9 | 0610-475 | HOSE, COOLANT-THERMO/FRT EXCH-W/PROTECTO | 1 | $43.95 | |
| 10 | 0623-761 | CLAMP,COOLANT TANK | 1 | $6.89 | |
| 11 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 12 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 13 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 14 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 15 | 0610-244 | HOSE,COOLANT-FRONT EXCH.TO RH EXCH. | 1 | $26.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 18 | 0610-379 | HOSE,COOLANT-LH EXCH. TO TANK | 1 | $41.95 |
