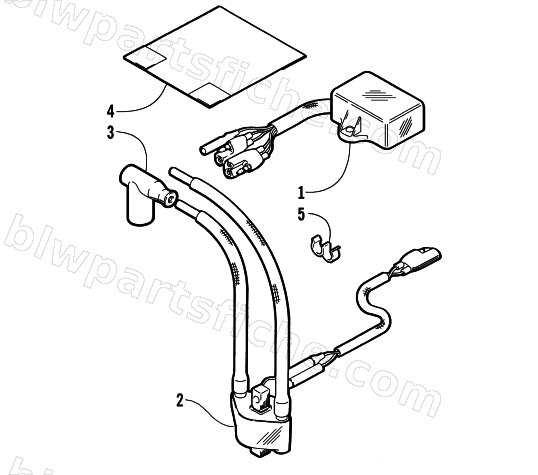

2002 Arctic Cat PANTERA 550 — ELECTRICAL
2002 PANTERA 550
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-408 | CDI UNIT | 1 | $612.95 | |
| 2 | 3005-409 | COIL ASSY, IGNITION | 1 | $251.95 | |
| 3 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 4 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 5 | 3005-387 | CLIP | 1 | $4.40 |
