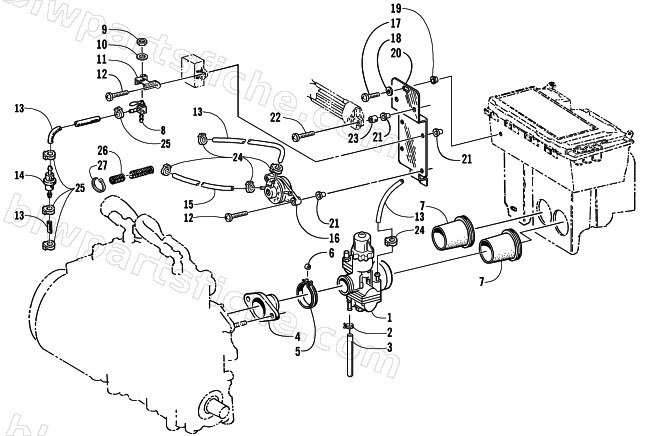

2002 Arctic Cat PANTERA 550 — CARBURETOR AND FUEL PUMP ASSEMBLY
2002 PANTERA 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-204 | CARB-ASSY VM38-362 97COA/COB/PAB | 1 | $454.95 | |
| 1 | 0770-526 | CARB,VM38-455 W/CARB SWITCH-ASSY | 1 | $729.95 | |
| 2 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 3 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 4 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 5 | 0670-199 | CLAMP,CARB FLANGE-VM38 W/SPACER | 1 | $27.95 | |
| 7 | 1670-402 | BOOT, AIR SILENCER | 1 | $26.95 | |
| 8 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 9 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 10 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 11 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 12 | 0623-833 | SCREW,MACH-PHPNH 10-32X1.00 Z&Y-SEMS | 1 | $1.95 | |
| 13 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 13 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 14 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 15 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 16 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 17 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 18 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 19 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 20 | 0770-310 | PLATE,MTG-FAB(ENG COMPONENTS) | 1 | $29.95 | |
| 22 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 23 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 24 | 0623-502 | CLAMP,HOSE (SNP01.5) | 1 | $1.59 | |
| 25 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 26 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 27 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
