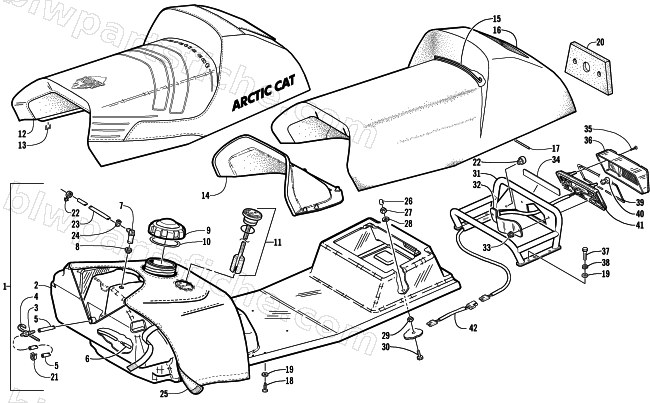

2002 Arctic Cat MOUNTAIN CAT 800 — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2002 MOUNTAIN CAT 800
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1718-155 | SEAT,ASSY 02 MC800 | 1 | $757.95 | |
| 0 | 1718-157 | SEAT,ASSY 02 MC800 L/E BLK/ORN | 1 | $587.95 | |
| 2 | 0770-572 | TANK,GAS 02 MC 800 | 1 | $407.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 12 | 1706-878 | COVER, SEAT-W/DECALS-02 MC | 1 | $406.95 | |
| 12 | 1706-908 | COVER,SEAT W/DECAL 02 MC800 L/E BLK/ORN | 1 | $594.95 | |
| 13 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 14 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 15 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 16 | 1706-197 | FOAM,SEAT(77-82ILD).44@5.7 | 1 | $189.95 | |
| 18 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 21 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 22 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 23 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 23 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 24 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 25 | 0705-424 | WRAP/PAD, GAS TANK-12 GAL W/ GUAGE | 1 | $77.95 | |
| 27 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 29 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 30 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 31 | 1706-385 | RACK,144" MC-PTD PLATINUM | 1 | $154.95 | |
| 32 | 1606-429 | PLATE,PROTECTOR-TAILLIGHT-PTD BLK | 1 | $17.95 | |
| 33 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 34 | 3611-924 | DECAL, WARNING,-MAX LOAD | 1 | $16.95 | |
| 35 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 36 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 37 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 38 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 39 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 40 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 41 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 42 | 0686-054 | HARNESS,EXTENSION-MC TAILLIGHT | 1 | $43.95 |
