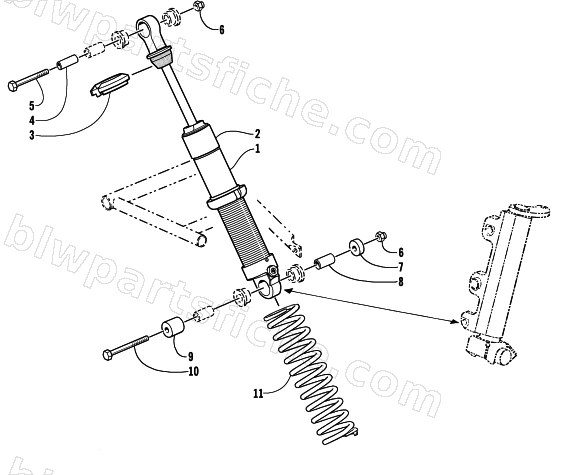

2002 Arctic Cat MOUNTAIN CAT 800 — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2002 MOUNTAIN CAT 800
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-224 | KIT,SKI SHOCKS-S/PARTS | 1 | $1,105.95 | |
| 2 | 1603-271 | SLEEVE,WEAR-FRT SHOCK | 1 | $20.95 | |
| 3 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 6 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 7 | 0603-855 | SPACER, SHOCK MTG - REAR | 1 | $3.99 | |
| 8 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 9 | 0603-854 | SPACER, SHOCK MTG - FRT | 1 | $13.73 | |
| 10 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 11 | 1603-527 | SPRING,COMPRESSION -BLK | 1 | $33.95 |
