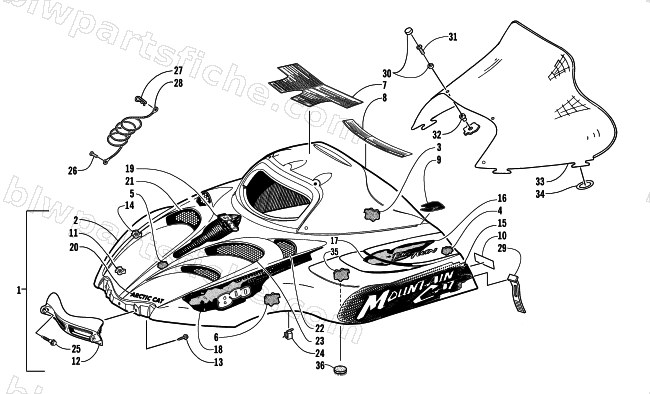

2002 Arctic Cat MOUNTAIN CAT 800 (LE 151) — HOOD AND WINDSHIELD ASSEMBLY
2002 MOUNTAIN CAT 800 (LE 151)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-067 | HOOD, W/ DECAL-MC 800/LE-BLK/GRN | 1 | $1,144.95 | |
| 1 | 1718-138 | HOOD, W/DECAL-MC 800 LE-BLK/ORN | 1 | $1,264.95 | |
| 2 | 1718-054 | HOOD, W/O DECAL | 1 | $1,201.95 | |
| 2 | 1718-139 | HOOD, W/O DECAL-MC 800/EFI LE-BLK/ORN | 1 | $1,201.95 | |
| 4 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 6 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 9 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 | |
| 10 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 11 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 11 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 12 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 12 | 2606-454 | HINGE, HOOD-GRAY-INJ MOLD | 1 | $73.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 15 | 4611-072 | DECAL, HOOD-LWR RH | 1 | $97.95 | |
| 15 | 4611-073 | DECAL, HOOD,LWR LH | 1 | $97.95 | |
| 15 | 4611-426 | DECAL, HOOD-LWR RH-ORN | 1 | $37.95 | |
| 15 | 4611-425 | DECAL, HOOD-LWR LH-ORN | 1 | $33.95 | |
| 16 | 4611-070 | DECAL,HOOD-RR VENT-RH(MC) | 1 | $70.95 | |
| 16 | 4611-071 | DECAL,HOOD-RR VENT-LH(MC) | 1 | $70.95 | |
| 16 | 4611-438 | DECAL, HOOD-RR RH VENT-"BIG TWIN"-ORN | 1 | $86.95 | |
| 16 | 4611-439 | DECAL, HOOD-RR LH VENT-"BIG TWIN"-ORN | 1 | $81.95 | |
| 17 | 4611-068 | DECAL, HOOD-FRT RH VENT-MC | 1 | $20.95 | |
| 17 | 4611-069 | DECAL, HOOD-FRT LH VENT-MC | 1 | $18.95 | |
| 18 | 4611-056 | DECAL,HOOD-UPPER RH"800"(MC) | 1 | $83.95 | |
| 18 | 4611-057 | DECAL,HOOD-UPPER LH"800"(MC) | 1 | $83.95 | |
| 18 | 4611-436 | DECAL, HOOD-UPR RH-"800"-MC-ORN | 1 | $102.95 | |
| 18 | 4611-437 | DECAL, HOOD-UPR LH-"800"-MC-ORN | 1 | $102.95 | |
| 19 | 4611-065 | DECAL,HOOD-CENTER-"800"(MC) | 1 | $40.95 | |
| 19 | 4611-435 | DECAL, HOOD-CTR-"800"-MC-ORN | 1 | $41.95 | |
| 20 | 4611-062 | DECAL,HOOD-NOSE-"ARCTIC CAT"-MC | 1 | $16.49 | |
| 21 | 2606-322 | SCREEN, VENT HOOD-RH-CTR/SLV | 1 | $69.95 | |
| 22 | 2606-323 | SCREEN, VENT HOOD-LH-UPPER/SLV | 1 | $24.77 | |
| 23 | 2606-325 | SCREEN, VENT HOOD-LH-CTR/SLV | 1 | $64.95 | |
| 24 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 25 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 28 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 29 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 30 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 31 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 32 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 33 | 2606-471 | WINDSHIELD, FORMED | 1 | $160.95 | |
| 34 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 35 | 0617-426 | FOAM, VENT-HOOD | 1 | $27.95 | |
| 36 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 |
