2002 Arctic Cat MOUNTAIN CAT 800 (LE 144) — ELECTRICAL
2002 MOUNTAIN CAT 800 (LE 144)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

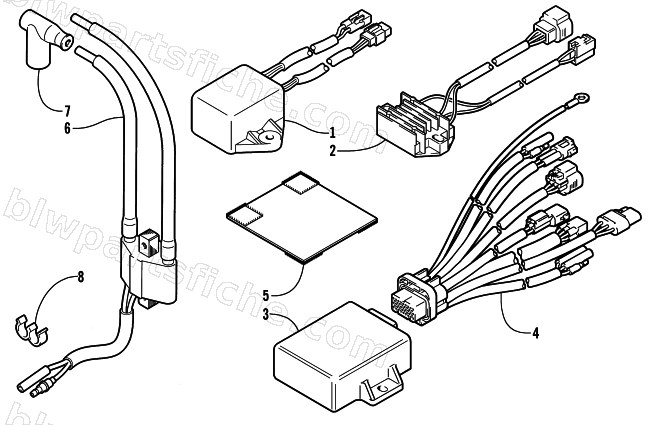

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-890 | CONDENSOR, EXHAUST VALVE | 1 | $373.95 | |
| 2 | 3005-891 | REGULATOR, EXHAUST VALVE | 1 | $440.95 | |
| 3 | 3005-973 | CDI, HIGH ALT | 1 | $1,330.95 | |
| 4 | 3005-975 | HARNESS, CDI | 1 | $457.95 | |
| 5 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 6 | 3005-381 | COIL ASSY, IGNITION | 1 | $244.95 | |
| 7 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 8 | 3005-387 | CLIP | 1 | $4.40 |
