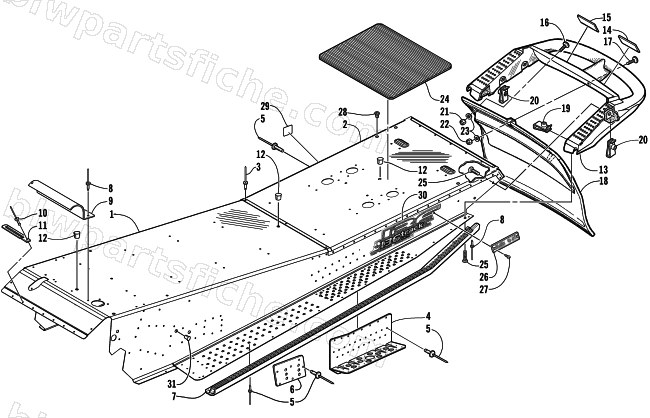

2002 Arctic Cat MOUNTAIN CAT 600 EFI () — TUNNEL AND REAR BUMPER
2002 MOUNTAIN CAT 600 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-147 | TUNNEL-ASSY-02 MC 500 | 1 | $891.95 | |
| 1 | 1718-135 | TUNNEL-ASSY-02 MC 600 EFI L/E | 1 | $837.95 | |
| 2 | 2606-202 | END PLATE, REAR-136"-01 MC | 1 | $150.95 | |
| 2 | 2606-115 | PLATE, END-REAR-01 PS | 1 | $185.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 4 | 2706-766 | BRKT,RR SUSP MTG-RH PTD BLK | 1 | $184.95 | |
| 4 | 2706-767 | BRKT,RR SUSP MTG-LH PTD BLK | 1 | $211.95 | |
| 5 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 5 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 6 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 7 | 2606-506 | ROLL, TUNNEL-RH-136"-FORMED | 1 | $72.95 | |
| 7 | 2606-507 | ROLL, TUNNEL-LH-136"-FORMED | 1 | $74.95 | |
| 7 | 2606-510 | ROLL, TUNNEL-RH-144"-FORMED | 1 | $72.95 | |
| 7 | 2606-511 | ROLL, TUNNEL-LH-144"-FORMED | 1 | $74.95 | |
| 8 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 9 | 0607-751 | BRKT,PROTECTOR-MAIN HARNESS | 1 | $17.95 | |
| 10 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 11 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 12 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 13 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 16 | 8007-579 | SCREW,MACH-CRTH 1/4-20X.625 G2 Z&Y | 1 | $0.45 | |
| 17 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 18 | 1606-202 | SNOWFLAP-BLK (99 PROD) | 1 | $96.95 | |
| 18 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 19 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 20 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 1606-444 | PAD,RUBBER-RIBBED | 1 | $31.95 | |
| 24 | 2606-134 | PAD, RUBBER | 1 | $36.95 | |
| 25 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 26 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 27 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 28 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 29 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 30 | 4611-050 | DECAL,TUNNEL-136"-RH(MC) | 1 | $57.95 | |
| 30 | 4611-051 | DECAL,TUNNEL-136"-LH(MC) | 1 | $57.95 | |
| 30 | 4611-048 | DECAL,TUNNEL-144"-RH(MC) | 1 | $63.95 | |
| 30 | 4611-049 | DECAL,TUNNEL-144"-LH(MC) | 1 | $63.95 | |
| 30 | 4611-434 | DECAL, TUNNEL-144"-RH-MC-ORN | 1 | $63.95 | |
| 30 | 4611-433 | DECAL, TUNNEL-144"-LH-MC-ORN | 1 | $74.95 | |
| 31 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 |
