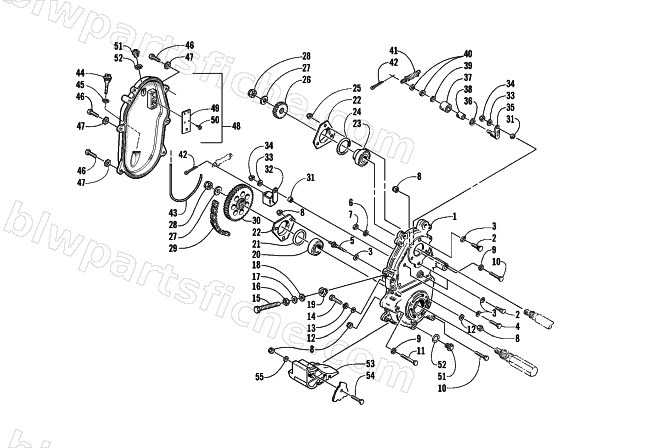

DRIVE/DROPCASE ASSEMBLY
2002 MOUNTAIN CAT 600 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-421 | DROPCASE, W/ STUDS-UNPAINTED | 1 | $244.95 | |
| 2 | 0123-523 | BOLT,RIB NECK-RDH 5/16-18X.625 Z&Y | 1 | $3.02 | |
| 3 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 4 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 5 | 0623-317 | STUD,5/16-18 RIBBED-DROPCASE | 1 | $20.63 | |
| 6 | 0623-094 | WASHER, FLAT - 5/16 ID | 1 | $0.40 | |
| 7 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8011-139 | BOLT,CRG 5/16-18X2.50 GR1 Z&Y | 1 | $1.23 | |
| 11 | 8011-143 | BOLT,CRG 5/16-18X3.50 GR1 Z&Y | 1 | $1.23 | |
| 12 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 13 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 14 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 15 | 1602-101 | SCREW, CHAIN,ROLLER | 1 | $5.95 | |
| 16 | 0123-150 | NUT,JAM 3/8-16 | 1 | $0.40 | |
| 17 | 2623-057 | WASHER,SEALING-RUBBER (YM) | 1 | $1.92 | |
| 18 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 19 | 0602-876 | ADAPTER,MANUAL ADJUST | 1 | $20.63 | |
| 20 | 1702-179 | KIT,REPLACEMENT BEARING-1" | 1 | $79.95 | |
| 21 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 22 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 23 | 1702-180 | KIT,REPLACEMENT BEARING-7/8" | 1 | $63.95 | |
| 24 | 1670-237 | SEAL, O-RING(2-033) | 1 | $0.95 | |
| 25 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 26 | 0602-444 | SPROCKET,19T | 1 | $57.95 | |
| 26 | 0602-456 | SPROCKET,20T (13 WIDE) | 1 | $66.95 | |
| 27 | 0623-231 | WASHER,SPRING-BELLEVILLE | 1 | $4.26 | |
| 28 | 0623-465 | NUT,FLEX-LOC 1/2-20 | 1 | $6.89 | |
| 29 | 1602-041 | CHAIN, 70P - 13 WIDE | 1 | $117.95 | |
| 30 | 0602-453 | SPROCKET,40T X 13 WIDE | 1 | $106.95 | |
| 30 | 0602-451 | SPROCKET,39T-PM-13 WIDE | 1 | $99.95 | |
| 31 | 0602-369 | BUSHING,TIGHTENER ARM | 1 | $11.86 | |
| 32 | 0702-324 | ADJUSTER,CHAIN-MANUAL (BIG BUSHING) | 1 | $60.95 | |
| 33 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 34 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 35 | 0702-115 | ARM,TIGHTENER | 1 | $33.95 | |
| 36 | 0623-283 | WASHER, FLAT .521 X 1.01 X .06 HARDENED | 1 | $0.55 | |
| 37 | 0702-129 | ROLLER ASSY-CHAIN TIGHTENER | 1 | $60.95 | |
| 38 | 0602-383 | BEARING,CHAIN TIGHTENER-1/2 ID X .75 | 1 | $3.95 | |
| 39 | 0623-284 | WASHER, FLAT .271 X .75 X .06 HARDENED | 1 | $0.75 | |
| 40 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 41 | 0702-130 | SPRING ASSY-CHAIN TIGHTENER | 1 | $15.11 | |
| 42 | 0123-082 | PIN, COTTER - 1/16 X 5/8 | 1 | $0.15 | |
| 43 | 0602-437 | O-RING,DROPCASE COVER | 1 | $13.73 | |
| 44 | 0602-462 | STICK,CHECK-OIL LEVEL | 1 | $10.97 | |
| 45 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 46 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 47 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 48 | 7996-258 | COVER, DROPCASE-MFG ASSY (UNPTD) | 1 | $108.95 | |
| 49 | 1602-152 | COVER, OIL VENT | 1 | $13.95 | |
| 50 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 51 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 52 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 53 | 1606-908 | GUARD,DROPCASE (2000) | 1 | $14.95 | |
| 54 | 8011-137 | BOLT,CRG 5/16-18X2.0 GR1 Z&Y | 1 | $0.25 | |
| 55 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 |
