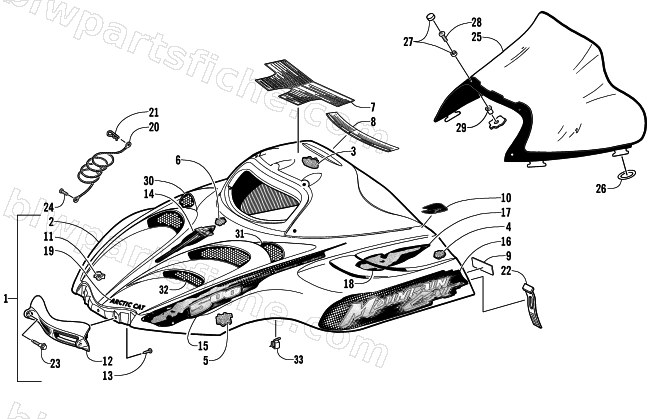

2002 Arctic Cat MOUNTAIN CAT 500 — HOOD AND WINDSHIELD ASSEMBLY
2002 MOUNTAIN CAT 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-047 | HOOD, W/DECALS-MC 500-BLK/GRN | 1 | $1,243.95 | |
| 2 | 1718-048 | HOOD,W/O DECALS-MC 5/6-BK/GN | 1 | $1,201.95 | |
| 4 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 5 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 6 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 10 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 | |
| 11 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 11 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 12 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 4611-063 | DECAL,HOOD-CENTER-"500"(MC) | 1 | $39.95 | |
| 15 | 4611-052 | DECAL,HOOD-UPPER RH"500"(MC) | 1 | $107.95 | |
| 15 | 4611-053 | DECAL,HOOD-UPPER LH"500"(MC) | 1 | $104.95 | |
| 16 | 4611-072 | DECAL, HOOD-LWR RH | 1 | $97.95 | |
| 16 | 4611-073 | DECAL, HOOD,LWR LH | 1 | $97.95 | |
| 17 | 4611-202 | DECAL, HOOD-RR RH VENT-MC | 1 | $36.95 | |
| 17 | 4611-203 | DECAL, HOOD-RR LH VENT-MC | 1 | $36.95 | |
| 18 | 4611-068 | DECAL, HOOD-FRT RH VENT-MC | 1 | $20.95 | |
| 18 | 4611-069 | DECAL, HOOD-FRT LH VENT-MC | 1 | $18.95 | |
| 19 | 4611-062 | DECAL,HOOD-NOSE-"ARCTIC CAT"-MC | 1 | $16.49 | |
| 20 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 22 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 23 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 25 | 2606-471 | WINDSHIELD, FORMED | 1 | $160.95 | |
| 26 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 27 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 28 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 29 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 30 | 2606-322 | SCREEN, VENT HOOD-RH-CTR/SLV | 1 | $69.95 | |
| 31 | 2606-323 | SCREEN, VENT HOOD-LH-UPPER/SLV | 1 | $24.77 | |
| 32 | 2606-325 | SCREEN, VENT HOOD-LH-CTR/SLV | 1 | $64.95 | |
| 33 | 0123-394 | CLIP CABLE | 1 | $1.37 |
