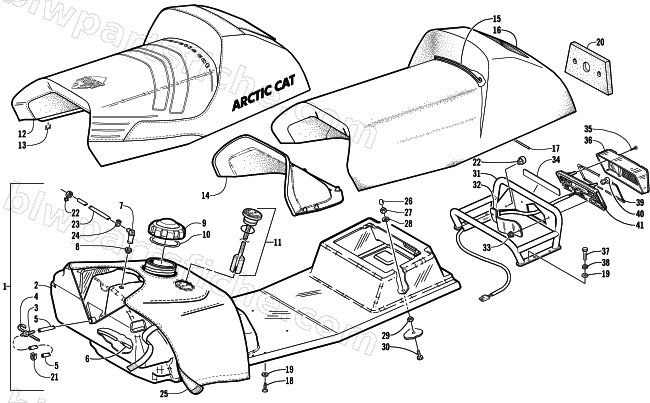

2002 Arctic Cat MOUNTAIN CAT 1000 — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2002 MOUNTAIN CAT 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1718-155 | SEAT,ASSY 02 MC800 | 1 | $757.95 | |
| 2 | 0770-572 | TANK,GAS 02 MC 800 | 1 | $407.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 12 | 1706-878 | COVER, SEAT-W/DECALS-02 MC | 1 | $406.95 | |
| 13 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 14 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 15 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 16 | 1706-197 | FOAM,SEAT(77-82ILD).44@5.7 | 1 | $189.95 | |
| 18 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 21 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 22 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 23 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 23 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 24 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 25 | 0705-424 | WRAP/PAD, GAS TANK-12 GAL W/ GUAGE | 1 | $77.95 | |
| 27 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 29 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 30 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 31 | 1706-385 | RACK,144" MC-PTD PLATINUM | 1 | $154.95 | |
| 32 | 1606-429 | PLATE,PROTECTOR-TAILLIGHT-PTD BLK | 1 | $17.95 | |
| 33 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 34 | 3611-924 | DECAL, WARNING,-MAX LOAD | 1 | $16.95 | |
| 35 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 36 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 37 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 38 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 39 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 40 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 41 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 |
