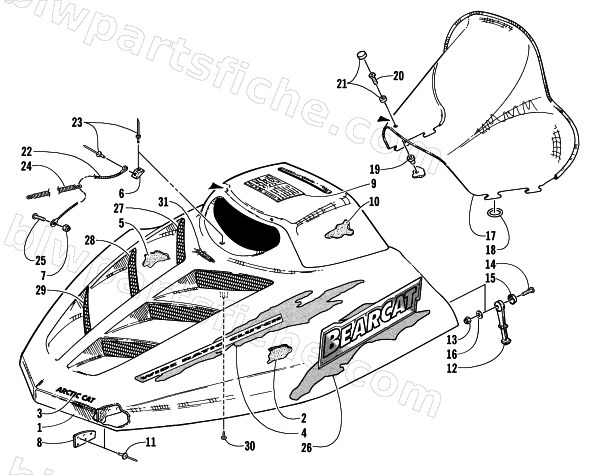

2002 Arctic Cat BEARCAT WIDE TRACK () — HOOD AND WINDSHIELD ASSEMBLY
2002 BEARCAT WIDE TRACK ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-125 | HOOD W/ DECALS-02 BC/WT | 1 | $2,019.95 | |
| 1 | 0718-968 | HOOD W/O DECALS-01 BC W/T | 1 | $1,652.95 | |
| 2 | 0717-058 | FOAM,HOOD-RH | 1 | $32.95 | |
| 2 | 0717-059 | FOAM,HOOD-LH | 1 | $32.95 | |
| 3 | 4611-150 | DECAL, PEWTER-"ARCTIC CAT" | 1 | $31.95 | |
| 4 | 4611-360 | DECAL, HOOD-UPR RH | 1 | $166.95 | |
| 4 | 4611-361 | DECAL, HOOD-UPR LH | 1 | $99.95 | |
| 5 | 0717-060 | FOAM,HOOD-CENTER-RH | 1 | $5.95 | |
| 5 | 0717-061 | FOAM,HOOD-CENTER-LH | 1 | $5.95 | |
| 6 | 1606-088 | BRKT,HOOD CABLE | 1 | $6.95 | |
| 7 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 8 | 0616-438 | BRKT, HOOD HINGE | 1 | $6.95 | |
| 9 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 10 | 0717-062 | FOAM,HOOD-UPPER-RH | 1 | $13.95 | |
| 10 | 0717-063 | FOAM,HOOD-UPPER-LH | 1 | $13.95 | |
| 11 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 12 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 15 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 1606-820 | WINDSHIELD,CLEAR | 1 | $158.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0616-614 | CABLE,HOOD-36.5 (.20 EYELET BOTH ENDS) | 1 | $15.11 | |
| 23 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 26 | 4611-362 | DECAL, HOOD-LWR RH | 1 | $99.95 | |
| 26 | 4611-363 | DECAL, HOOD LWR LH | 1 | $86.95 | |
| 27 | 0706-996 | SCREEN, VENT HOOD WELD'T-TOP RH BLK | 1 | $48.95 | |
| 27 | 0706-997 | SCREEN, VENT-HOOD-WELD'T-TOP LH BLK | 1 | $46.95 | |
| 28 | 0706-998 | SCREEN, VENT-HOOD-WELD'T-CENTER RH-BLK | 1 | $37.95 | |
| 28 | 0706-999 | SCREEN, VENT-HOOD-WELD'T-CENTER LH BLK | 1 | $37.95 | |
| 29 | 0716-004 | SCREEN, VENT-HOOD-WELD'T-LOWER RH BLK | 1 | $55.95 | |
| 29 | 0716-005 | SCREEN, VENT-HOOD-WELD'T-LOWER LH BLK | 1 | $52.95 | |
| 30 | 0623-707 | SCREW,SELF TAP-PHTRH #6 X 1/2" Z&Y | 1 | $0.15 | |
| 31 | 3611-581 | DECAL, "ESR" | 1 | $23.95 |
