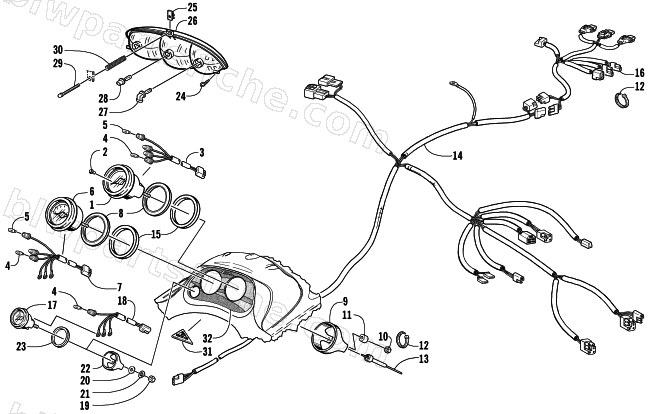

2002 Arctic Cat 4-STROKE TRAIL — HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2002 4-STROKE TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-265 | SPEEDOMETER, 100 MPH-SMC OIL SENSOR | 1 | $353.95 | |
| 2 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 3 | 0620-266 | HARNESS, SPEEDOMETER-OIL SENSOR | 1 | $163.95 | |
| 4 | 0620-149 | BULB,T-10 WEDGE BASE-12V 1.7W | 1 | $4.95 | |
| 5 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 6 | 0620-259 | TACHOMETER,DC-3W 660 EFI | 1 | $643.95 | |
| 7 | 0620-262 | HARNESS,TACH-DC 3W 660 EFI | 1 | $163.95 | |
| 8 | 0620-135 | RING, RUBBER CUSHION-TACH/SPEEDO | 1 | $3.57 | |
| 9 | 0620-134 | BACKCLAMP, TACH/SPEEDO | 1 | $17.95 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 1623-041 | SPACER, .325 X .540 X .500 | 1 | $1.92 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 0620-269 | CABLE, SPEEDOMETER-96" | 1 | $68.95 | |
| 14 | 0686-758 | HARNESS, MAIN-4 STROKE TRL | 1 | $285.95 | |
| 15 | 2606-388 | SPACER, TACH/SPEEDO | 1 | $128.95 | |
| 16 | 0686-759 | HARNESS, HOOD-4 STROKE TRL | 1 | $117.95 | |
| 17 | 0620-260 | GAUGE, TEMP,N/S AC W/DEG W/O LOGO | 1 | $167.95 | |
| 18 | 0620-274 | HARNESS, TEMP GAUGE | 1 | $144.95 | |
| 19 | 0623-839 | NUT, HEX - M4 X 0.7 Z&Y | 1 | $0.40 | |
| 20 | 8050-122 | WASHER,FLAT- #8 X .438 X .049 Z&Y | 1 | $3.85 | |
| 21 | 8051-122 | WASHER,SPR LOCK-#8 .167X.293X.040 Z&Y | 1 | $0.55 | |
| 22 | 0620-138 | BACKCLAMP, FUEL GAUGE | 1 | $16.49 | |
| 23 | 0620-139 | RING, RUBBER CUSHION-FUEL GAUGE | 1 | $3.85 | |
| 24 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 25 | 0623-757 | NUT,U 1/4-20 (SHORT .50) | 1 | $1.78 | |
| 26 | 0609-250 | REFLECTOR/LENS,HEADLIGHT(0609-249) | 1 | $183.95 | |
| 27 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 28 | 0609-252 | BULB, (GE 885)HEADLIGHT-LOW BEAM | 1 | $31.95 | |
| 29 | 0623-467 | SCREW,THUMB-1/4X20X3.5 | 1 | $15.11 | |
| 30 | 0623-466 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $5.78 | |
| 32 | 4611-096 | DECAL, HOOD-CONSOLE | 1 | $47.95 |
