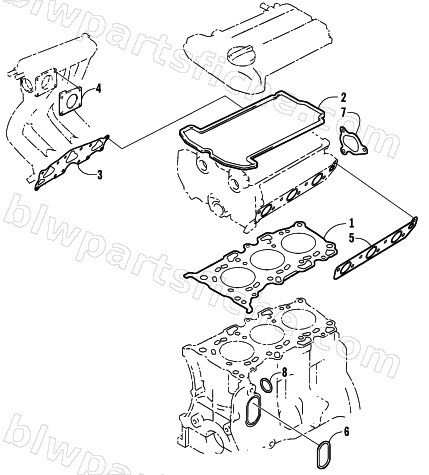

2002 Arctic Cat 4-STROKE TOURING — GASKET SET
2002 4-STROKE TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3006-296 | GASKET SET, ENGINE '02 660 L/C | 1 | $333.95 | |
| 1 | 3006-135 | GASKET CYLINDER HEAD '02 660 L/C | 1 | $178.95 | |
| 2 | 3006-138 | GASKET,CYLINDER HEAD COVER '02 660 L/C | 1 | $62.95 | |
| 3 | 3006-205 | GASKET,INTAKE MANIFOLD '02 660 L/C | 1 | $32.95 | |
| 4 | 3006-209 | GASKET,THROTTLE BODY '02 660 L/C | 1 | $20.95 | |
| 5 | 3007-587 | GASKET | 1 | $33.95 | |
| 6 | 3006-953 | O-RING,WATER PUMP | 1 | $17.87 | |
| 7 | 3006-232 | GASKET,THERMO CASE '02 660 L/C | 1 | $20.63 | |
| 8 | 3006-234 | O-RING,WTR INLET PIPE '02 660 L/C | 1 | $12.95 |
