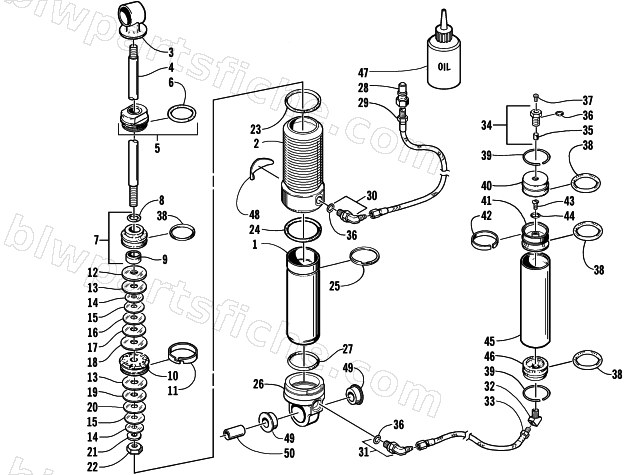

2001 Arctic Cat ZRT 800 LE — REAR SUSPENSION FRONT ARM SHOCK ABSORBER (LE)
2001 ZRT 800 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-556 | SHOCK, FR-ARM EASY-ADJUST (MELONITE) | 1 | $1,182.95 | |
| 0 | 1639-770 | REBUILD KIT,A/C SHOCK (FRT ADJ SHOCK) | 1 | $85.95 | |
| 1 | 1604-546 | BODY,SHOCK-TURNED 1.625X5.590(MELONITE) | 1 | $177.95 | |
| 2 | 1604-517 | ADJUSTER SLEEVE, EASY-ADJ | 1 | $402.95 | |
| 3 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 4 | 1604-545 | ROD,SHOCK-6.670(MELONITE) | 1 | $127.95 | |
| 5 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 6 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 7 | 0704-476 | PISTON,SEPERATOR-ASSY | 1 | $67.95 | |
| 8 | 1604-527 | O-RING, INNER, SEPERATOR PISTON | 1 | $3.30 | |
| 10 | 0603-953 | PISTON, .093 ORIFICE | 1 | $94.95 | |
| 11 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 12 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 13 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 14 | 1603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $4.40 | |
| 15 | 1603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $4.13 | |
| 16 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 17 | 1603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $4.82 | |
| 18 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 19 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 20 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 21 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 22 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 23 | 1604-528 | O-RING, ADJUSTER, BOTTOM | 1 | $1.50 | |
| 24 | 1604-529 | O-RING, ADJUSTER, TOP | 1 | $1.64 | |
| 25 | 0603-911 | RING,RETAINING-SPIRAL | 1 | $16.49 | |
| 26 | 1604-524 | END CAP, SHOCK, EASY ADJ. | 1 | $125.95 | |
| 27 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 28 | 1604-536 | HYDRAULIC COUPLER, FEMALE THREAD | 1 | $56.95 | |
| 29 | 1604-530 | HOSE, Q D NIPPLE TO SHOCK, 30IN. | 1 | $128.95 | |
| 30 | 1604-552 | FITTING,HOSE-MODIFIED-90 DEG X FJIC | 1 | $66.95 | |
| 31 | 1604-533 | ELBOW,90 DEG-7/16-20X7/16 W/FLARE | 1 | $37.95 | |
| 32 | 1604-534 | 45DEG. STRAIGHT THREAD ELBOW, FLARE TUBE | 1 | $14.95 | |
| 33 | 1604-532 | HOSE, RESERVOIR TO SHOCK. 16IN. | 1 | $66.95 | |
| 34 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 36 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 37 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 38 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 39 | 1604-525 | CIRCLIP,RESERVOIR.063 DIA.X 1.42 ID | 1 | $6.95 | |
| 40 | 1604-520 | ENDCAP,EASY ADJ RES-7/16-20 UNF | 1 | $28.95 | |
| 41 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 42 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 43 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 44 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 45 | 1604-554 | BODY, RESERVOIR-1.625 X 5.000 (MELONITE) | 1 | $313.95 | |
| 46 | 1604-535 | ENDCAP, RESERVOIR | 1 | $28.95 | |
| 47 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 48 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 49 | 1604-287 | BUSHING,SHOCK-.160" FLANGE | 1 | $2.88 | |
| 50 | 1604-289 | SLEEVE,EYELET-OUTER-(1.020") | 1 | $13.73 |
